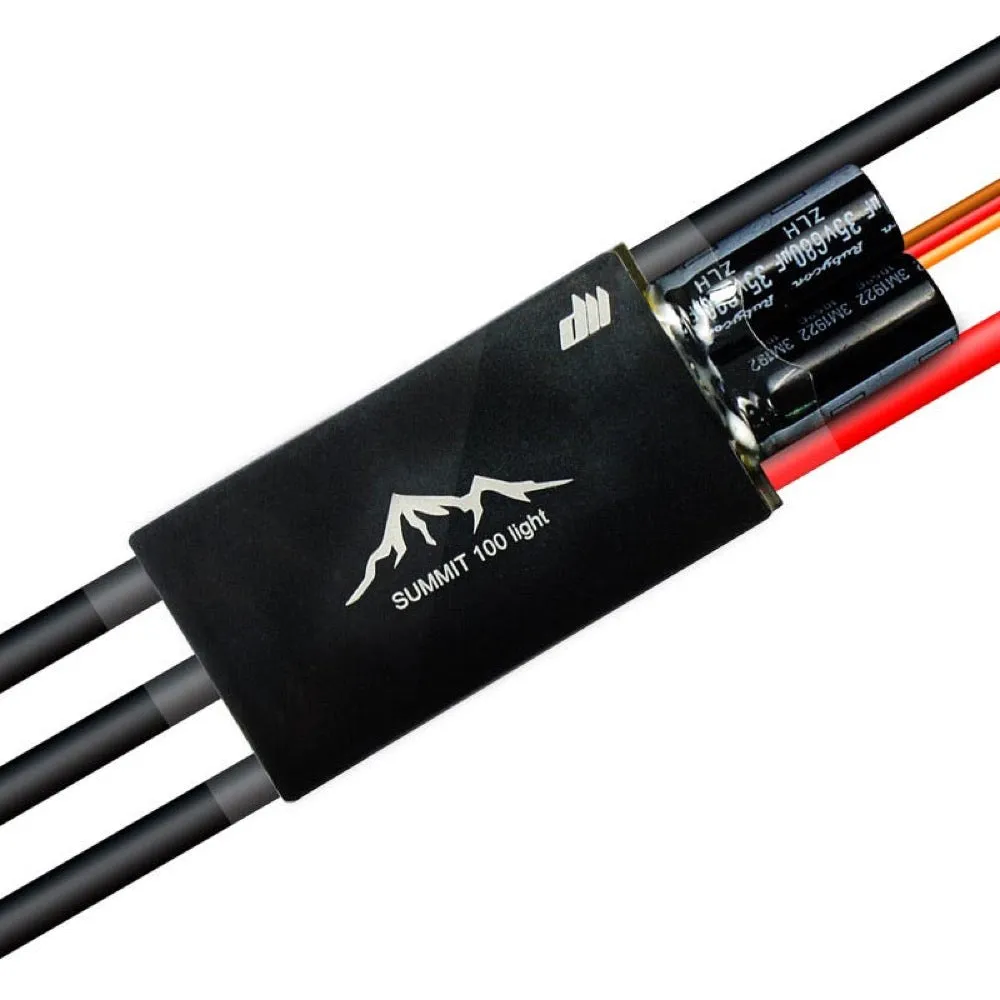

Dualsky Summit 100 Light 8S Brushless ESC

Dualsky Summit 100 Light 8S Brushless ESC

$235.99

Description

The Dualsky Summit 100 Light 8S Brushless ESC is suitable for 60-inch to 67-inch 3D airplanes and 70E to 80E F3A airplanes. Features - Lightweight (only 91g) for gliders and aerobatic aircraft - Tests passed with Dualsky GA, EA and ECO motors - PC software for advanced settings and firmware updates - Default parameters provide a balanced performance - 32-bit ARM core - Auto-timing - Quick acceleration - Drag brake & energy recovery - Brake adjustable - Performance UBEC - Multiple protection - Support up to 300,000 ERPM Specification - Dimensions (L x W x D): 78 x 30 x 17.5mm - Weight with wire: 91g - Number of Cells: 2S - 8S LiPo, 7.4 - 29.6V - Continuous Current: 100A - Bursts Current: 130A - Resistance (Ri) (mOhm): 1.2 - Signal & Frequency: PWM, up to 450Hz - Battery Eliminate Circuit: Switching mode, 8A constant, 5V-7.4V adjustable - Fail-safe Switch: YES - Programming: Automatic & PC Software - Flight Controller Friendly: YES - Energy Recovery: YES - Brake System: YES & adjustable - Timing System: Automatic & Programmable - Low Voltage Protection: YES & Programmable - Acceleration: Programmable - Overheat Protection: YES - Heat Sink: YES - LED Indicator: YES, onboard - Input Wires: 12AWG, 220mm - Output Wires: 12AWG, 100mm w/ DB4F - Signal Wire: JR, 300mm - Tested Motors: - Dualsky GA1500(R) - Dualsky GA2000(R) - Dualsky EA V3 full line - Dualsky ECO V2 full line - Dualsky HD V3 full line - Applications: - Up to 2500W, 110E class electric powered - 3D/Freestlyle airplane, F3A and Fixed Wing UAV

Specifications

Brand Dualsky
