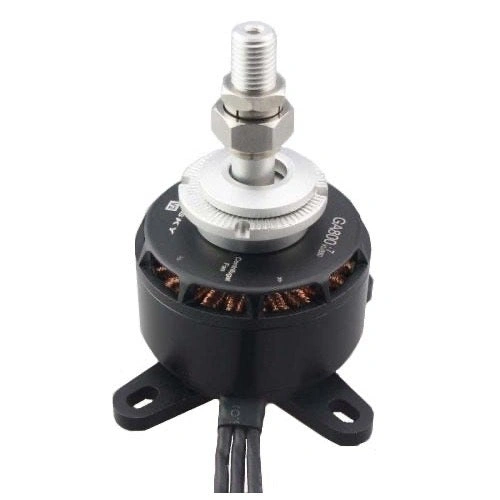

Dualsky GA800.7 Brushless Motor, 30E, 850kv

Dualsky GA800.7 Brushless Motor, 30E, 850kv

$131.99

Description

Dualsky GA800.7 850KV Brushless Motor, 800 watt max power, suitable for 30E 3D and aerobatic aircraft or 40 size sport models. Designed for operation with a 4S LiPO with max current draw around 50A. Compact, light weight and very efficient. Features - Designed for 30E - 40E class 3D airplane (Up to 55 inch wingspan) - Great alternative for a .15-.46ci engine - New modular light weight structure - Dualsky 28 poles efficient structure - Integrated motor mount Specification - RPM/V KV: 550 - Weight w/o accessories: 160g - Outer Diameter: 46 mm - Length w/ mounts: 42mm - Length (overall): 74mm - Diameter of Shaft: 5mm (internal) - 8mm (output): Mounting holes pitch - 52mm to 58mm (D 4.2): Slots, Poles - 24, 28 - Idle Current (Io) @10V: 1.3A - Resistance (Ri): 42.7 mOhm - Nominal Voltage (V): 22.2V, 6S LiPo - Peak Power [15s]: 1000W - Bursts Current [15s]: 42A - Cruising Power [8 mins]: 500W - Recommended ESC: XC406ULT - Propeller: - 12 x 6 for best efficiency - 13 x 6.5 for pilots performance - 14 x 7 for extreme thrust - Weight of Sports Airplane: Up to 2.2kg - Weight of 3D Airplane: 1.5kg to 1.8kg

Specifications

Brand Dualsky
