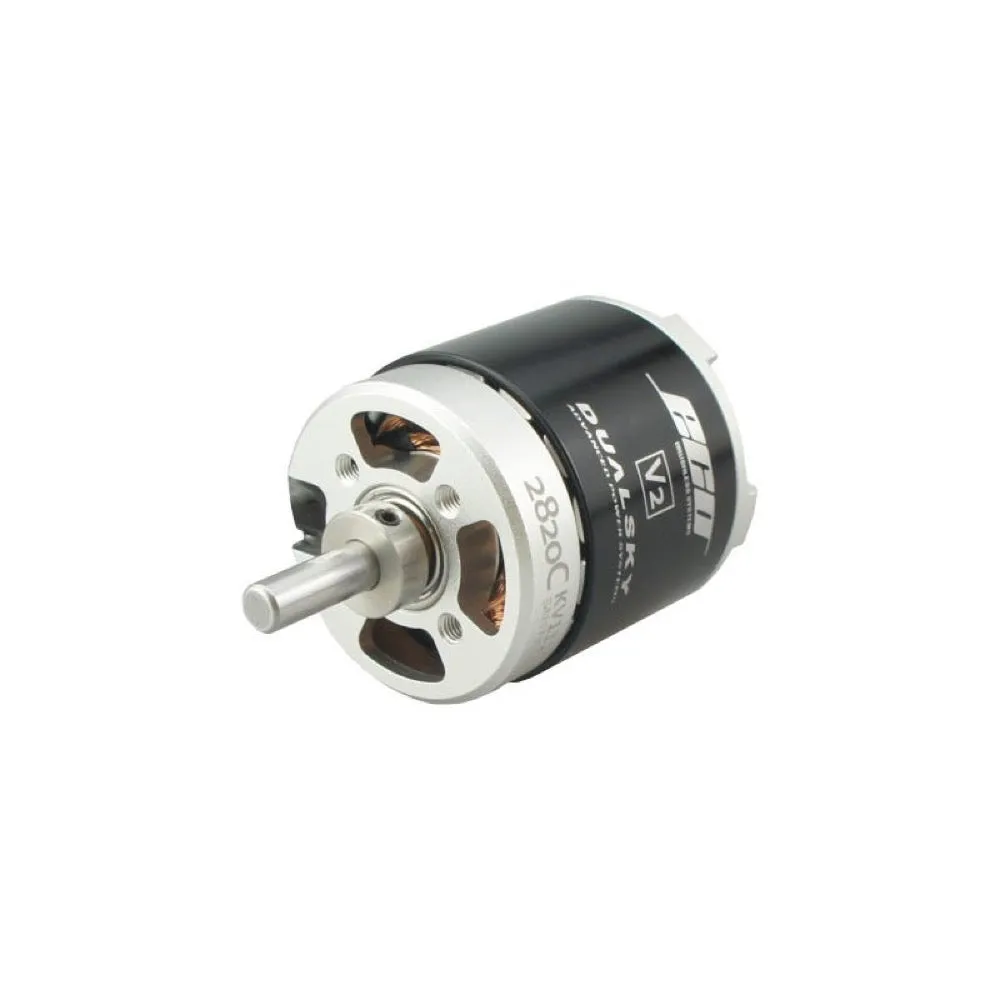

Dualsky ECO 2820C 1120kv Brushless Motor

Dualsky ECO 2820C 1120kv Brushless Motor

$84.99

Description

ECO V2 has made great improvements in many respects. It brought new electromagnetic design, more competitive performance and efficiency and is waterproof. Features - Classic Dualsky five-spokes back cover with simple lines - Motor structure strength increased by 25% - Optimised stress distribution and strength increased without increasing the weight - High strength main shaft - High temperature resistant, high toughness epoxy glue - High precision double sides dynamic balancing - Waterproof splash (ball bearing not waterproof) - Rust-proof main shaft Specification - KV: 1120 - Turns: .5 - Weight: 138g - Dimensions: 35.2 x 40.2mm - Slots & Poles: 12N14P - Ri (mOhm): 25 - Io@10V: 1.8 - No. of cells: 2..3 - Max. Efficiency Current [A]: 28 - Max. Burst Current (15S) [A]: 45 - Max. Power (15S)[A]: 540 - Max. Torque [N*M]: 0.46 - Shaft diameter: 5mm - Mounting holes pitch: 19/19 - Input Connectors: GC3.5 - Recommended ESC: XC-45-LITE or XC4018BA - Propeller: 3S: 12x5E, 11x7E, 10x6E - Class: .21-.30 Class

Specifications

Brand Dualsky
