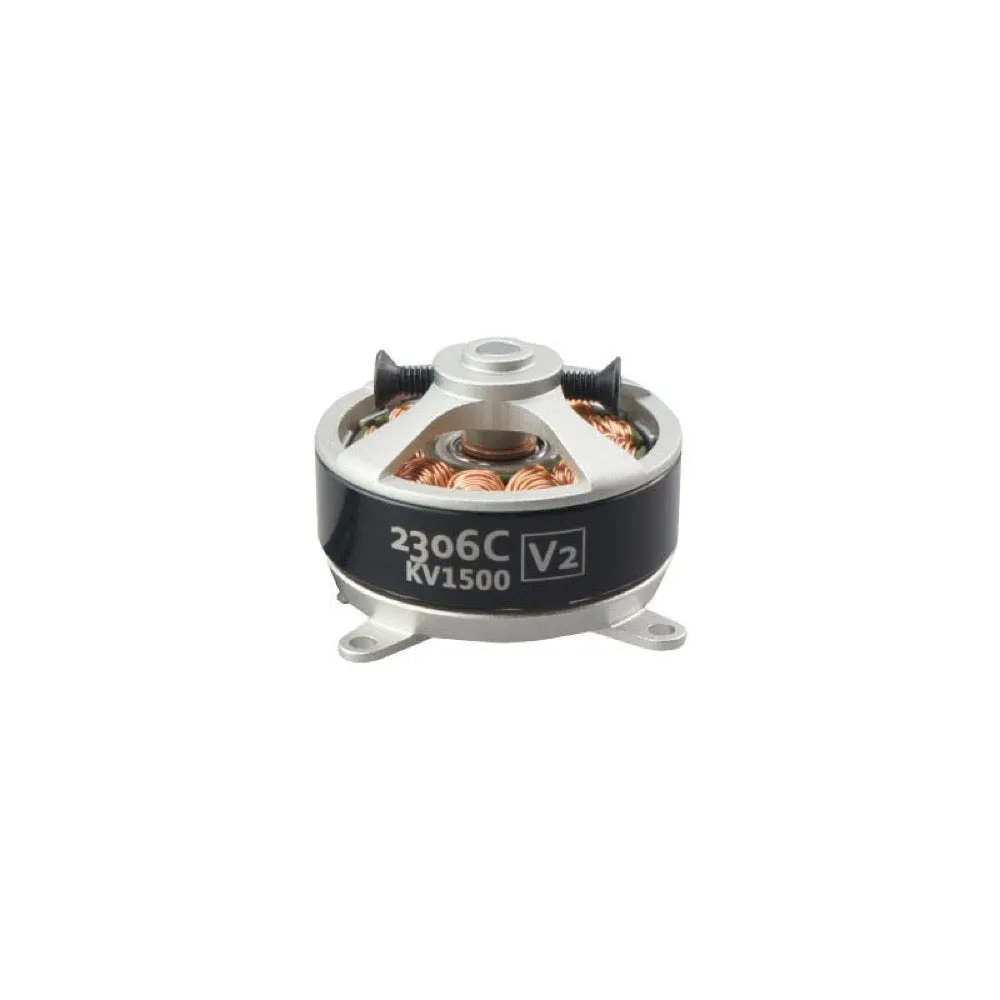

Dualsky ECO 2306C 1500kv Brushless Motor

Dualsky ECO 2306C 1500kv Brushless Motor

$42.99

Description

This Dualsky ECO 2306C V2 1500kv Brushless Motor is designed for 200-300g planes. Features - New electromagnetic design - More competitive performance and efficiency - Long-time endurance - Splash resistant (ball bearing not waterproof) - Classic five-spokes back cover with simple lines - Traditional dualsky colours anodized and matte finish - Multi-surface rotating laser marking - Optimised stress distribution and strength increased weight stays the same - High strenth and high toughness main shaft - The rotor limit adopts 2 insurance modes of circlip and stainless steel chocks - High temperature resistant, high toughness epoxy glue - High precision - Double sides dynamic balancing - Durable and low noise bearing - Optimised heat dissipation Specification - KV: 1500 - Slots & Poles: 12N14P - Turns: 15 - Ri (mOhm): 139.4 - Io@10V (A): 0.5 - Burst Current (15S) [A]: 14.2 - Peak Power (15S) [W]: 170 - Max Torque (nNM): 0.108 - Battery: 2S, 3S LiPo - Weight (g): 30 - Dimensions (DxL) (mm): 28.8x20.9 - Shaft diameter (mm): 3.175 - Mounting holes pitch: 32 - Input connectors: GC2.0 - Propeller: 2S: 9x6, 10.5E/ 3S: 7.5, 8x4.7E - Recommended ESC: XC-12-Lite or XC1210BA - Application: 200-300g airplanes e.g. EPP profile planes

Specifications

Brand Dualsky
