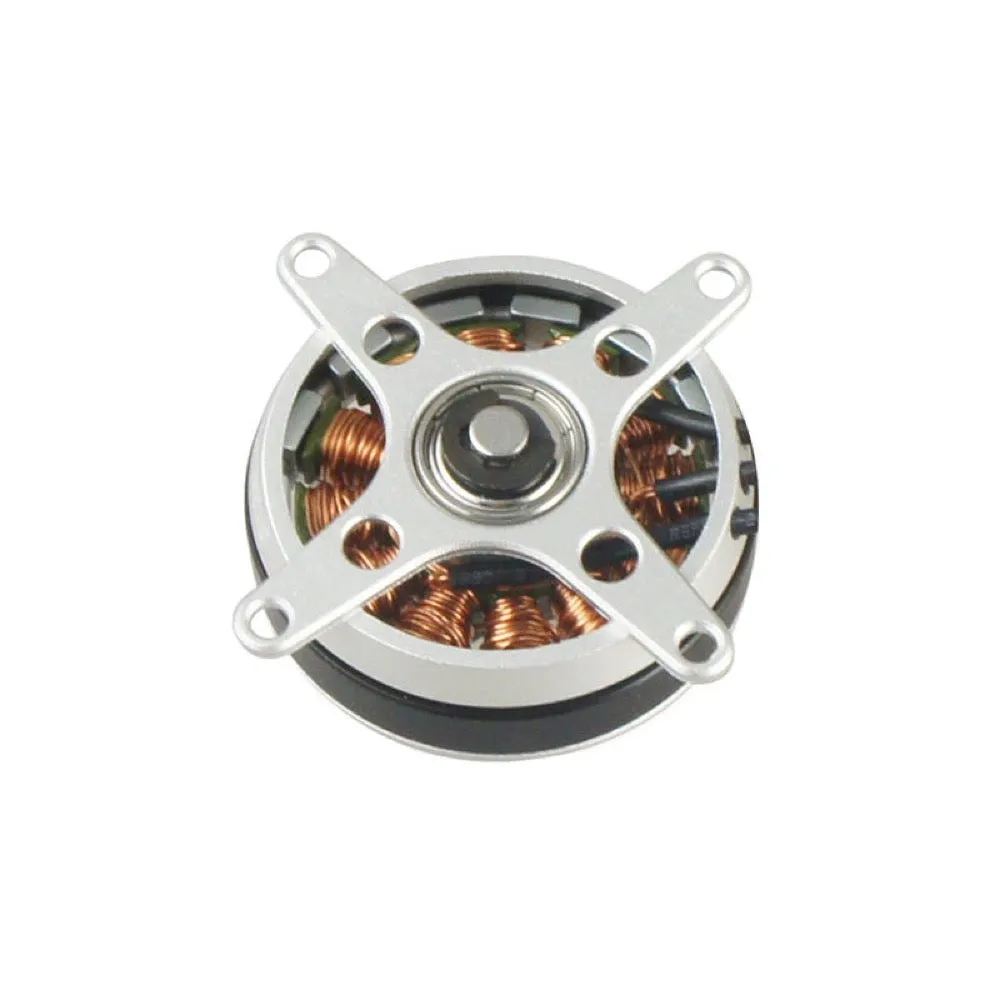

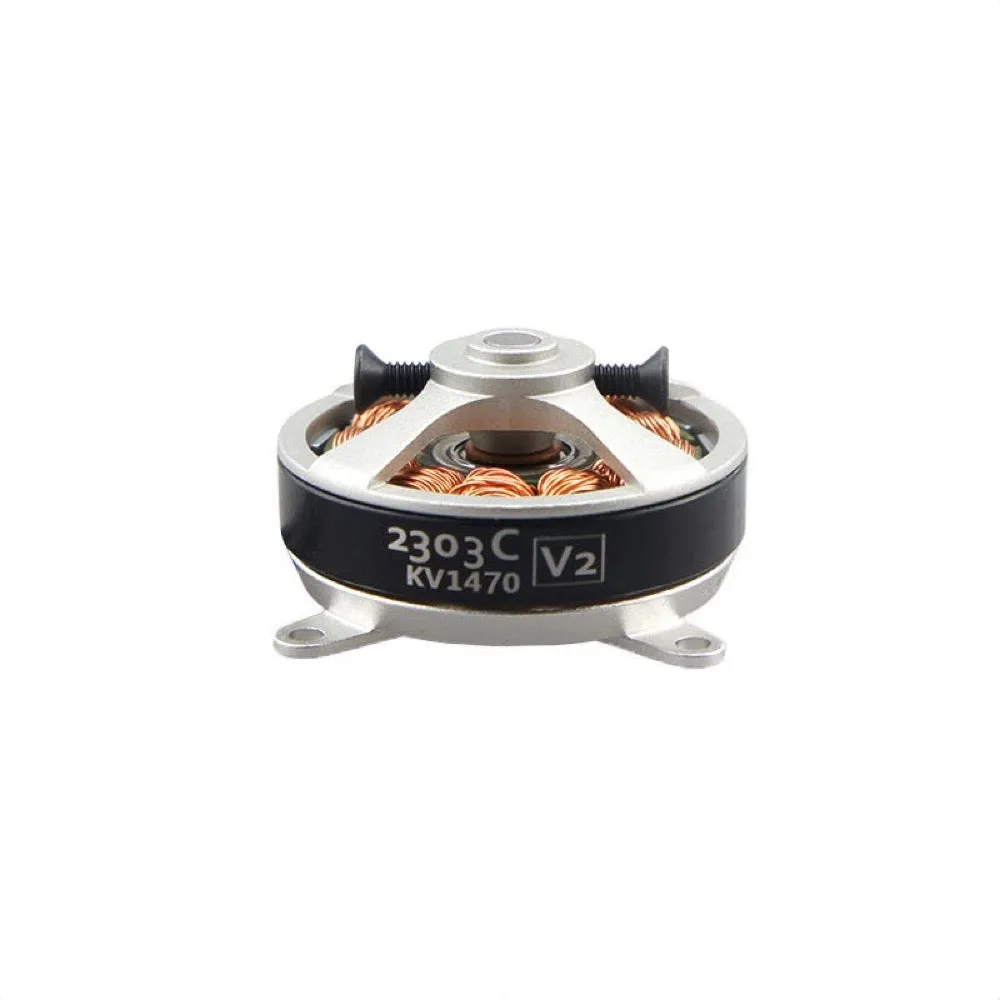

Dualsky ECO 2303C 1470kv Brushless Motor

Dualsky ECO 2303C 1470kv Brushless Motor

$35.99

Description

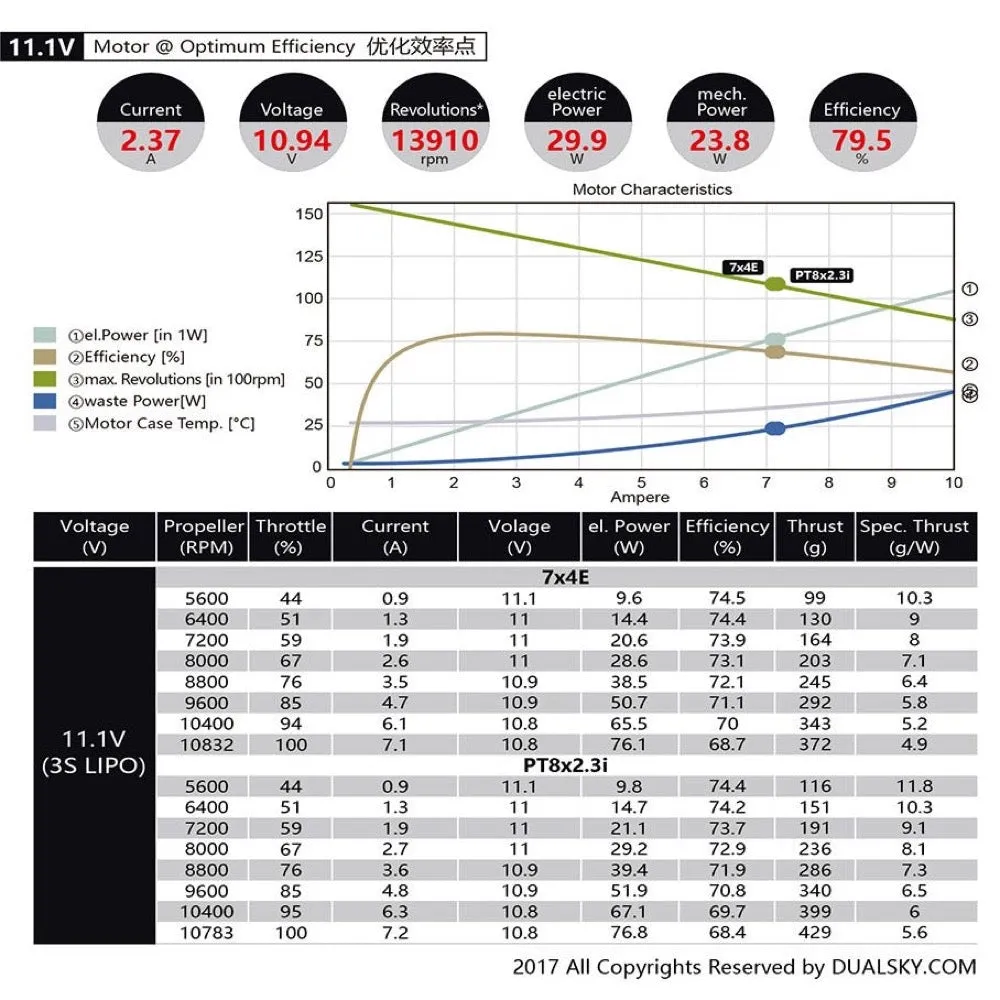

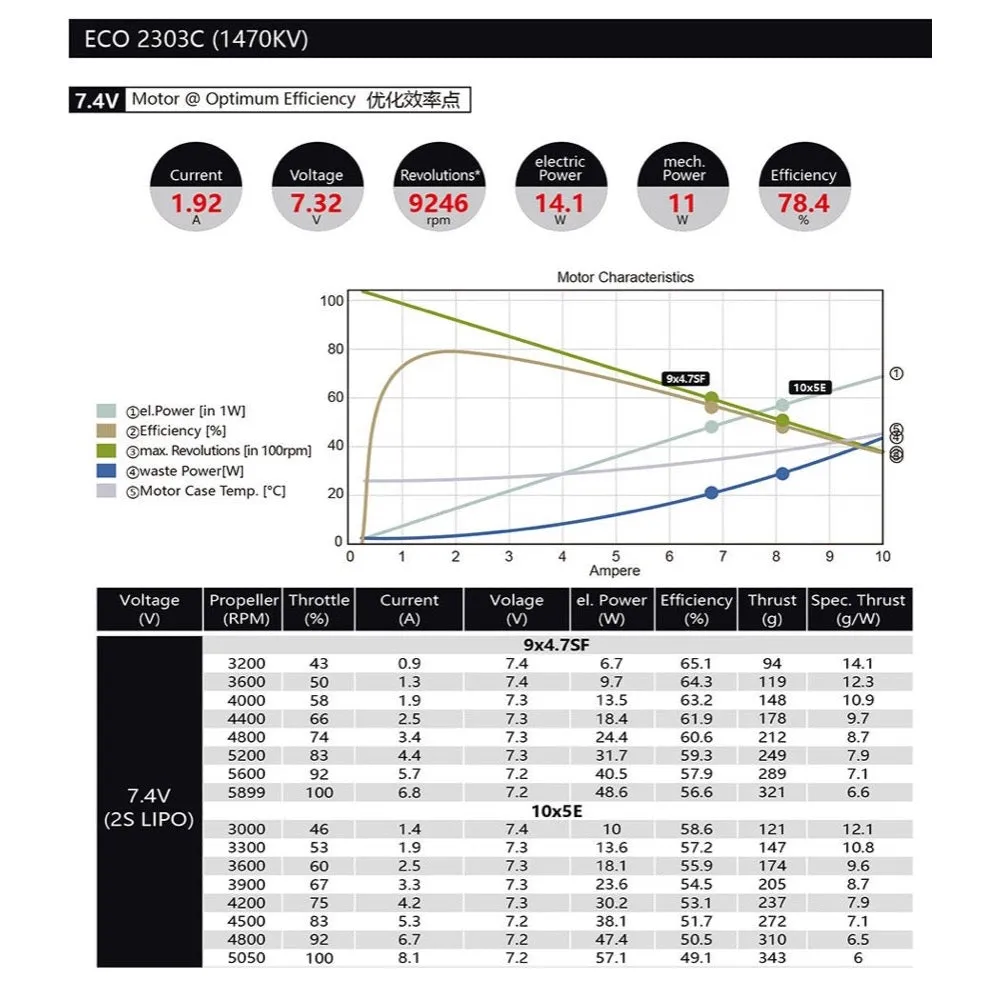

The Dualsky ECO 2 Series motors have made great improvements in many aspects. It brought a new electromagnetic design, more competitive performance and efficiency, long-time endurance and waterproof. Features - High temperature resistant - Impact resistance increased by about 10g - NMB ball bearings are durable and low noise - Motor working life significantly increased by 50% compared to V1 - Up to 500V insulation level - Rust-proof main shaft Specification - KV: 1470 - Turns: 31 - Weight: 19 g - Dimensions (D x L): 28.5 x 15.7 mm - Slots & Poles: 12N14P - Ri (mOhm): 377 - Io @ 10V: 0.3 A - No of Cells (LiPo): 2 - 3 - Max. Efficiency Current: 5 A - Max. Burst Current (15S): 8 A - Max. Power (15S): 96 W - Max. Torque [N*M]: 0.062 - Shaft Diameter: 3.175 mm - Mounting Holes Pitch: 32 - Input Connectors: GC2.0 - Recommended ESC: XC-12-LITE or XC1010BA - Propeller: - 2S: 9x4.7SF, 10x5E - 3S: 7x4E, PT8x2.3i - Class: 100-150g airplanes e.g. F3P or indoor freestyle

Specifications

Brand Dualsky
