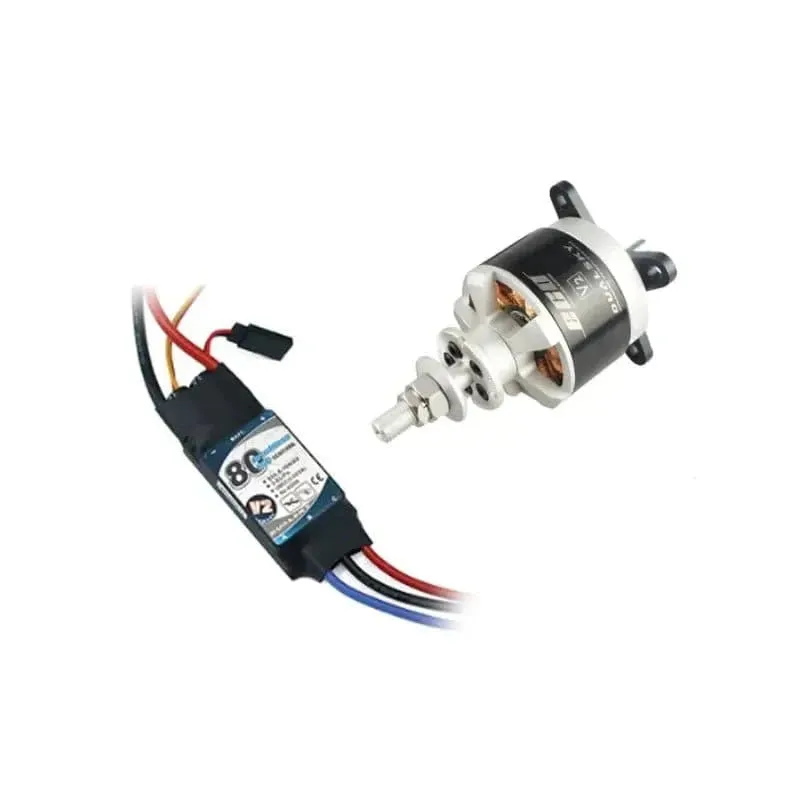

Dualsky 70E Tuning Combo with ECO 4120C V2 500kv Motor and 80A ESC

Dualsky 70E Tuning Combo with ECO 4120C V2 500kv Motor and 80A ESC

$257.99

Description

SKU: DSTC.6A.70E | Brand: Dualsky | Product: Dualsky 70E Tuning Combo with ECO 4120C V2 500kv Motor and 80A ESC The ECO V2 500kv motor in this 70E package features enhanced electromagnetic design, improved thermal management, and structural reinforcements. Motor construction includes increased material strength (25% improvement), optimized stress distribution, hardened main shaft (HRC48), dual rotor retention (circlip and stainless steel), high-temperature epoxy adhesive, and NMB ball bearings with 3-bearing configuration. High-precision double-sided dynamic balancing and protective design enhancements provide 10G impact resistance improvement. The motor utilizes classic five-spoke back cover design with anodized silver-black-silver finish and laser-etched serial tracking. Motor Specifications KV: 500 Weight: 385g Dimensions (D x L): 51.5 x 49.5mm Slots & Poles: 12N14P Ri (mOhm): 24 Io @ 10V: 1.1A LiPo Cells: 5-6 Max. Efficiency Current: 38A Max. Burst Current: 60A Max. Power: 1520W Max. Torque: 1.72 N*M Shaft Diameter: 8mm Mounting Holes Pitch: 30/30 Input Connectors: GC4.0 ESC Specifications Dimensions (L x W x D): 75 x 30 x 14mm Weight: 71g Cells: NiXX 6-18 (7.2-21.6V), LiPo 2-6 (7.4-22.2V) Resistance (Ri): 0.0016 Ohm Max Continuous Current: 80A Max Continuous Output: 1760W Max Burst Current: 100A Max Burst Output: 2200W BEC Output: 5.5V/3A (Switching) Programmable: Yes, via ProgCARD V2 Input Wires: 120mm, 14AWG

Specifications

Brand Dualsky
