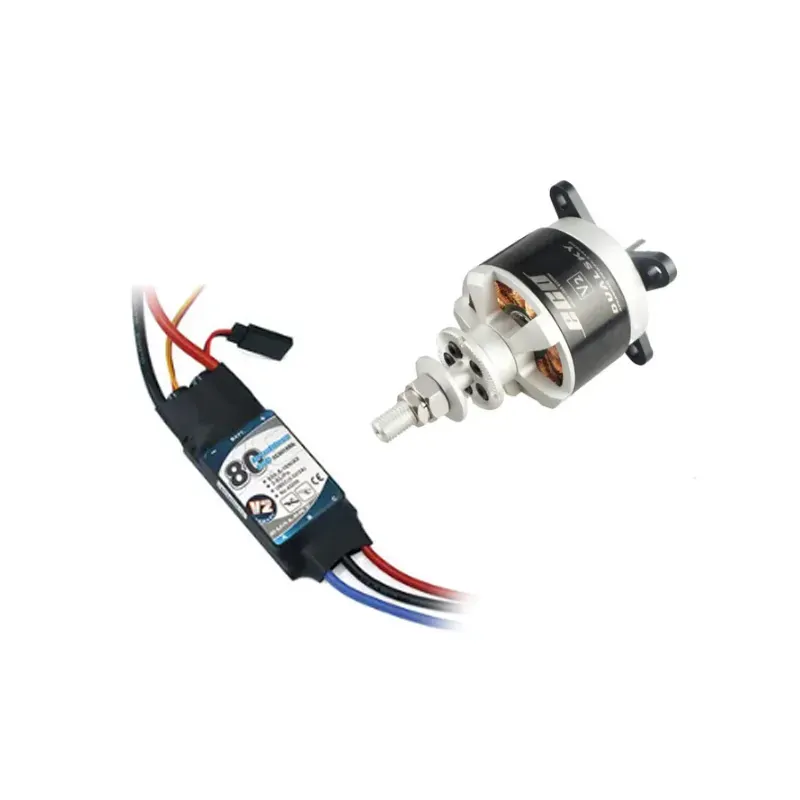

Dualsky 50E Tuning Combo with ECO4120C V2 560kv Motor and 80A ESC

Dualsky 50E Tuning Combo with ECO4120C V2 560kv Motor and 80A ESC

$257.99

Description

SKU: DSTC.5A.50E | Brand: Dualsky | Product: Dualsky 50E Tuning Combo with ECO4120C V2 560kv Motor and 80A ESC The 50-size package combines the ECO4120C V2 560kv motor with an 80A XC8018BA ESC for .42 to .55-class aircraft. Compatible with 5-6S LiPO batteries, it produces 1400W at 6S and serves as an electric replacement for 45-55 size 2-stroke engines. Motor Specifications KV: 560 Turns: 7 Weight: 280g Dimensions (D x L): 49.5 x 45.2mm Slots & Poles: 12N14P Ri (mOhm): 22 Io @ 10V: 1.3A LiPo Cells: 5-6 Max. Efficiency Current: 42A Max. Burst Current: 70A Max. Power: 1400W Max. Torque: 1.43 N*M Shaft Diameter: 6mm Mounting Holes Pitch: 30/30 Input Connectors: GC4.0 Propeller: 5S: 16x9E, 15x8E / 6S: 14x6E, 13x8E Class: .65-.70 4-Stroke ESC Specifications Dimensions (L x W x D): 75 x 30 x 14mm Weight: 71g Cells: NiXX 6-18 (7.2-21.6V), LiPo 2-6 (7.4-22.2V) Resistance (Ri): 0.0016 Ohm Max Continuous Current: 80A Max Continuous Output: 1680W Max Burst Current: 100A Max Burst Output: 2040W BEC Output: 5.5V/3A (Switching) Programmable: Yes, via ProgCARD V2 Input Wires: 120mm, 14AWG

Specifications

Brand Dualsky
