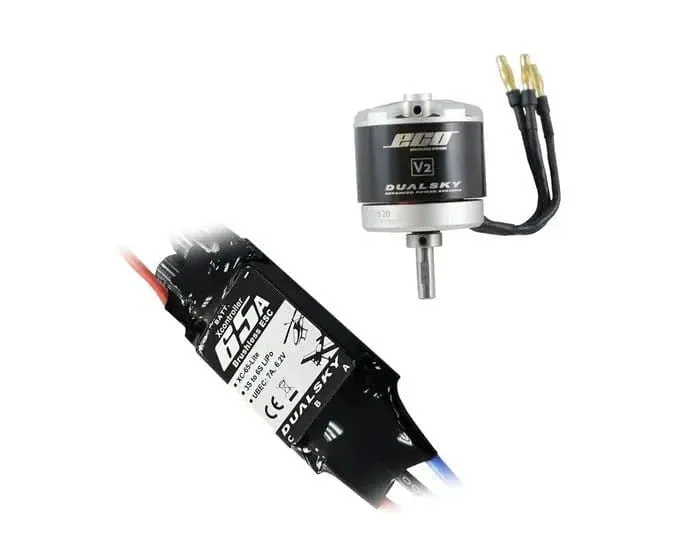

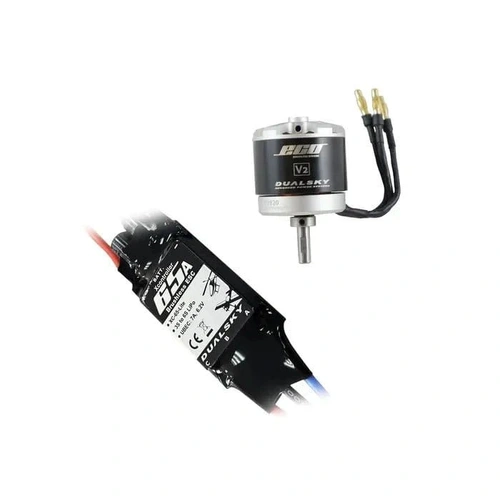

Dualsky 40E Tuning Combo with 3520C 820kv Motor and 65A Lite ESC

Dualsky 40E Tuning Combo with 3520C 820kv Motor and 65A Lite ESC

$175.99

Description

SKU: DSTC.4A.40E | Brand: Dualsky | Product: Dualsky 40E Tuning Combo with 3520C 820kv Motor and 65A Lite ESC This 40-size package pairs the 3520C V2 820kv brushless motor with a 65A Lite ESC for .32-.45 aircraft on 4S LiPO systems. Flight times exceed 10 minutes with 13x6E to 15x6E propellers. The motor features X-mount hardware for firewall or standoff installation. Battery connector for the ESC is not included. Motor Specifications KV: 820 Turns: 5 Weight (g): 210 Dimensions (D x L): 43.2 x 42.4mm Slots & Poles: 12N14P Ri (mOhm): 18.7 Io @10V (A): 1.7 LiPo Cells: 3 / 4 Max. Efficiency Current: 40A Max. Burst Current: 65A Max. Power: 1040W Max. Torque: 0.91 N*M Shaft Diameter: 6mm Mounting Holes Pitch: 25/25 Input Connectors: GC4.0 Propeller: 4S: 13x8E, 14x7E, 15x6E Class: .50 4-stroke or .32-.40 2-stroke ESC Specifications Dimensions (L x W x D): 72 x 33 x 12mm Weight (with wires): 61g Cells: NiXX 6-18 cell (7.2-21.6V), LiPo 3-6s (7.4-22.2V) Resistance (Ri): 0.002 Ohm Max Continuous Current: 65A Max Continuous Output: 1300W

Specifications

Brand Dualsky
