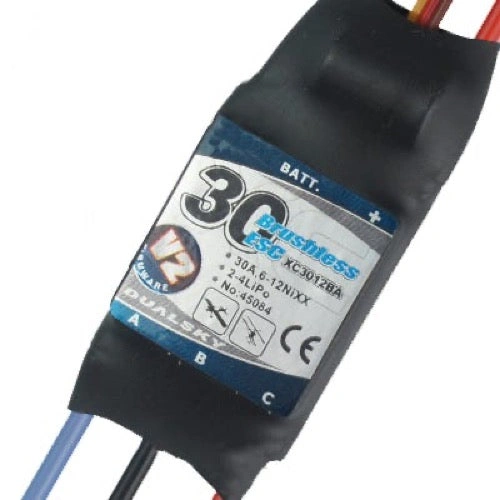

Dualsky 30A Brushless ESC

Dualsky 30A Brushless ESC

$61.99

Description

If you need a high-quality ESC, Dualsky's XC3012BA is hard to beat and is ideal for your 1 metre class aerobatic RC models. Features - Comes with the latest software and hardware - Compatible with motor types up to 210,000rpm (2 poles motors) - Low resistance - Quality MosFETs included for high current usage - Compatible with Dualsky's Governor Mode (DGM) - Modifiable cut-off for motor stop or power reduction - Dualsky's Linear Brake Mode allows you to adjust the brake strength - Cut-off setting available for instances of low voltage - Overheating protection - Automatic cut-off in the event of a signal loss - Numerous start-up modes for fixed wing and helicopter setups - Throttle control throughout the range is smooth and reliable Specification - Dimensions (L x W x D): 47 x 26 x 7mm - Weight (g): 22 - Number of Cells: NiXX 6-4, 7.2-14.4V/ LiPo 2-4, 7.4-14.8V - Resistance (Ri)(Ohm): 0.0059 - Max Cont. Current (A): 30 - Max Cont. Output (W): 420 - Max Burst Current (A): 40 - Max Burst Output (W): 544 - BEC/ Dissipative Power: 5V/2A (2W Linear) - Programmable: Throttle + ProgCARD + USB LINK - Input Wires: 100mm, 16AWG, DC3 - Output Wires: 65mm, 16AWG, DB3/DB2 - Signal Wire: 180mm JR - Description: Mini, High Amp - Application: Small Models, 1m Class Aerobatic

Specifications

Brand Dualsky
