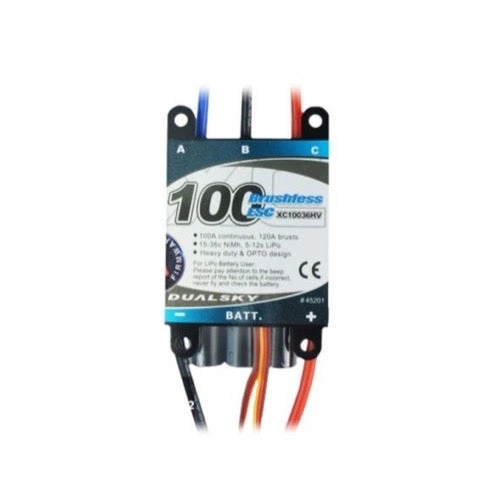

Dualsky 100A 12S OPTO Brushless ESC

The Dualsky 100A 12S OPTO Brushless ESC is suited for 2m FAI, F3A and 3D models that weigh up to 10kg. Features - Low voltage cut-off - Overheating protection - Signal loss auto cut-off - Normal, Soft or Super-Soft start-up modes available for both fixed wing and helicopter setups - Supports all motor types up to 210,000 rpm (2 Poles motors) - Adjustable cut-off - either stop motor or reduce the power - Dualsky Linear Brake Mode (DLBM) - Brake strength can be adjusted by the transmitter when switched on - Dualsky Governor Mode (DGM) ready - Extremely low resistance, factory high-quality mosFETs for high current usage - Smooth and accurate throttle control throughout the range - Throttle digital signal sampling, compatible with the signal frequency of 14 ms Normal mode and 7 ms high-speed mode (HS mode) - Suitable for all brands of transmitter as the throttle range can be re-calibrated - Fully PC programmable when used with the Dualsky USB link (not included) - Compatible with the Dualsky programming card (sold separately) for easy re-programming at the field Specification - Dimensions (L x W x D): 90 x 55 x 20mm - Weight (g): 140 - Number of Cells: NiXX 15 - 36, 18 - 43.2V / LiPo 5 - 12, 18.5 - 44.4V - Resistance (Ri)(Ohm): 0.0023 - Max Cont. Current (A): 100A - Max Cont. Output (W): 4200W - Max Burst Current (A): 130A - Max Burst Output (W): 5304W - BEC/ Dissipative Power: N/A, OPTO - Programmable: Throttle + ProgCARD+ USB LINK - Input Wires: 150mm, 12AWG, DC3 - Output Wires: 90mm, 12AWG, DB4 - Signal Wire: 300mm JR - Description: High Voltage - Application: 2m FAI F3A and 3D, Up to 10kg large models
