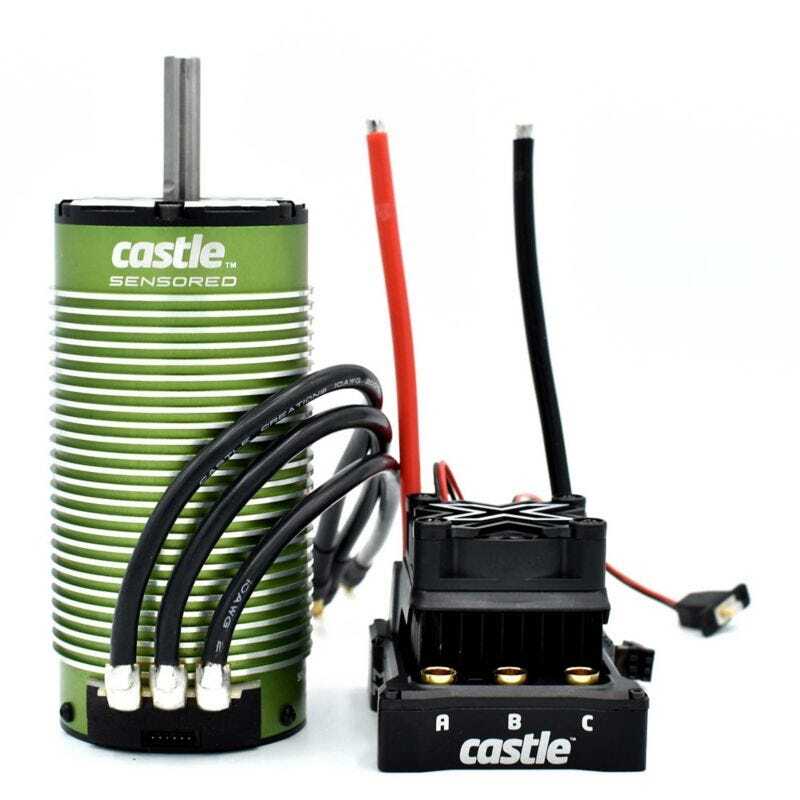

Castle Creations Mamba Monster X 8S ESC with 2028-800kv Sensored Motor, 010-0165-01

Castle Creations Mamba Monster X 8S and 2028-800Kv motor combo is intended for use in 1/6 scale vehicles weighing up to 25 lbs. and up to 8S LiPo.

ESC

• Input voltage range 2S-8S LiPo
• Sensored, Sensorless and SmartSense™ running modes
• Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
• Premium forged heatsink with elliptical fins for superior airflow and increased heat dissipation
• Oversized factory equipped thermally controlled 40mm fan
• Waterproof design for all weather conditions
• ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the components and promote efficient heat transfer
• Data-logging capability to capture and record performance data from your vehicle
• Auxiliary wire functionality for “on the-fly” adjustments using your transmitter
• Audible alerts for easy diagnosis of possible issues such as motor over-temperature and low voltage cutoff.
• Convenient transmitter programming for six adjustable settings such as cutoff voltage and drag brake.
• Easily tune and update ESC with USB and Bluetooth™ programming options.
• Castle Link USB programming kit
• Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store.
• Proudly designed and manufactured in Olathe, Kansas USA and backed by Castle Creations’ 1-year warranty

Motor

• 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
• Proprietary stator winding enables low internal resistance for a cooler running motor
• Dual sensor ports to ensure optimal installation in your large-scale vehicle
• Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible
• High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs

Contents

• 1/6 Mamba Monster X 8S Waterproof ESC

• 2028-800Kv Sensored Motor

• 10AWG wire

• 6.5mm connectors

• Product Manual
