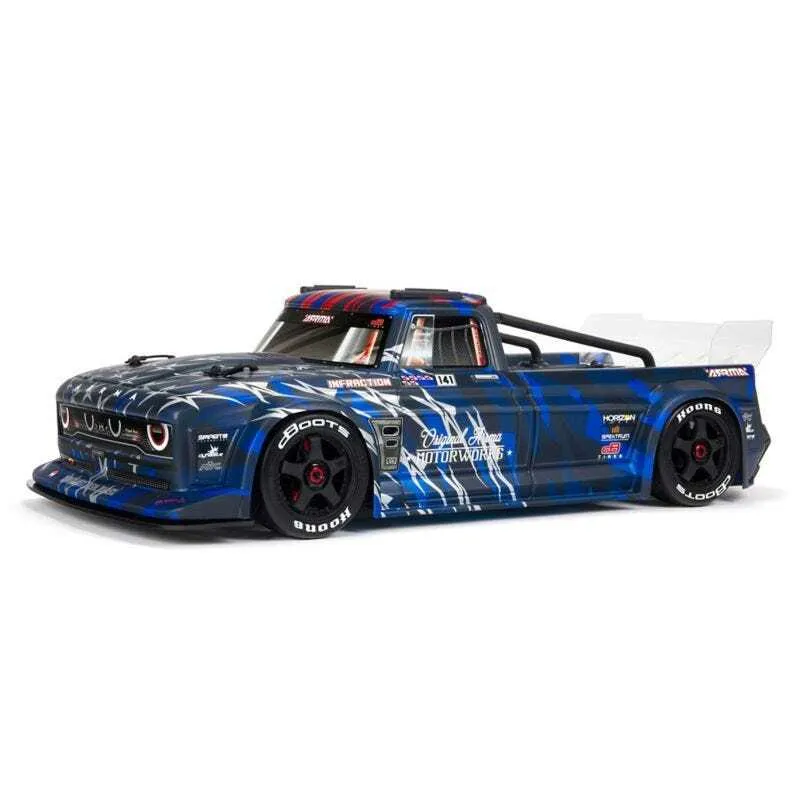

Arrma Infraction BLX All-Road Truck, RTR, Blue

Take high-speed street bashing performance to another level with the 1/7 scale ARRMA® INFRACTION 6S BLX 4WD RTR. Capable of 80+ MPH speeds out of the box over on-road, dirt, and oval tracks, it now includes a handbrake and Spektrum® Smart electronics.

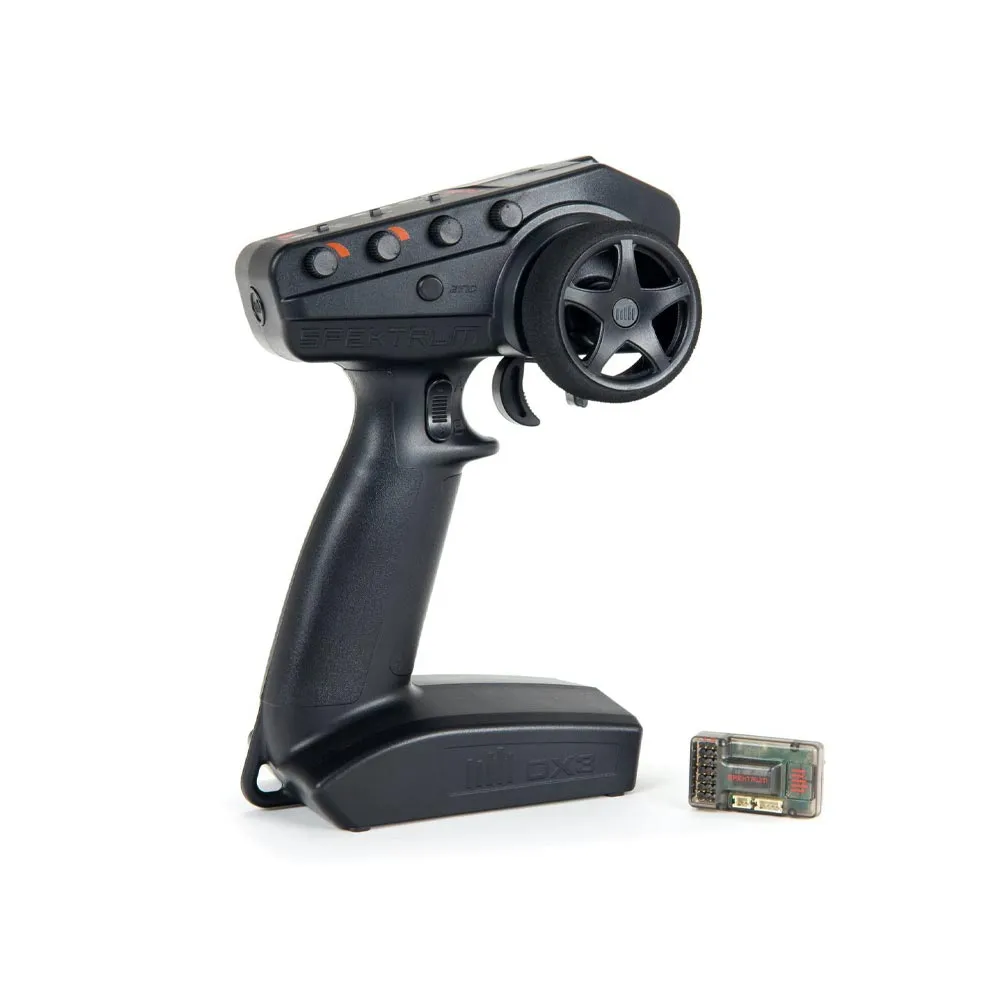

• Spektrum® 3-Channel DX3 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control)
  • Ergonomic steering wheel for precise control in all conditions
  • On-the-fly adjustable AVC® gain for personalized handling set-up
  • Convenient voltage level indicator for Spektrum® Smart batteries
  • Convenient handbrake button for on-demand drifting
• Download the free Spektrum® Dashboard app for iOS or Android to:
  • Connect your mobile device wirelessly via Bluetooth to your DX3 transmitter*
  • View real-time telemetry data including ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM
  • * Requires Bluetooth module SPM6741, available separately
• ARRMA® ADS-15M Steering Servo
  • Waterproof*
  • Metal-geared
  • 195 oz-in (15kg-cm) torque @ 6V
• Spektrum® SPMS650 Brake Servo
  • Waterproof*
  • Plastic-geared
  • 83 oz-in (6kg-cm) torque @ 6V

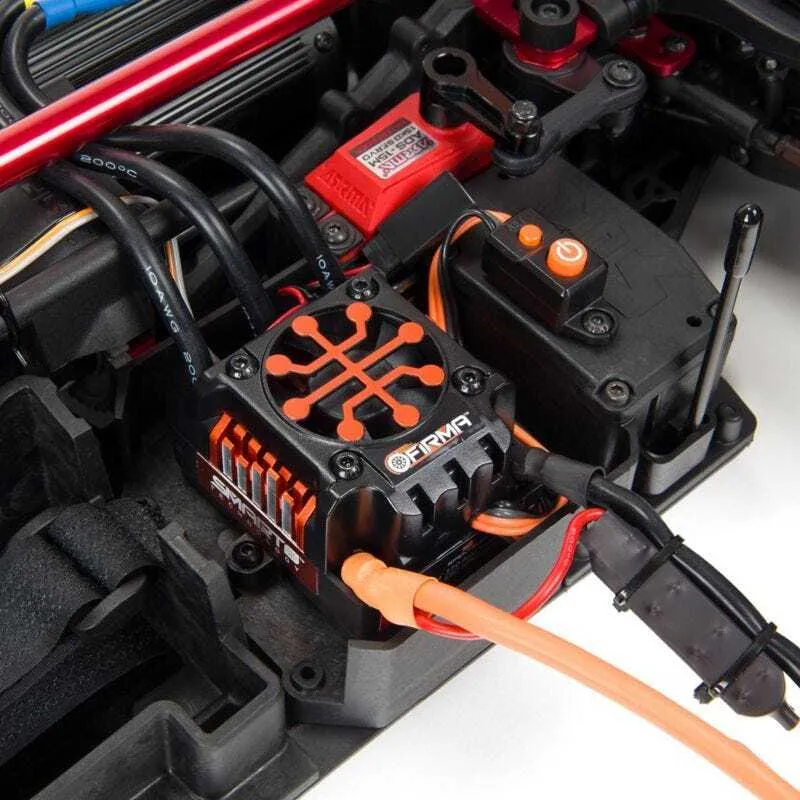

• Spektrum® Firma 150A Smart ESC
  • Waterproof*
  • Handles 4S/6S power
  • IC5® connectors (EC5 compatible)

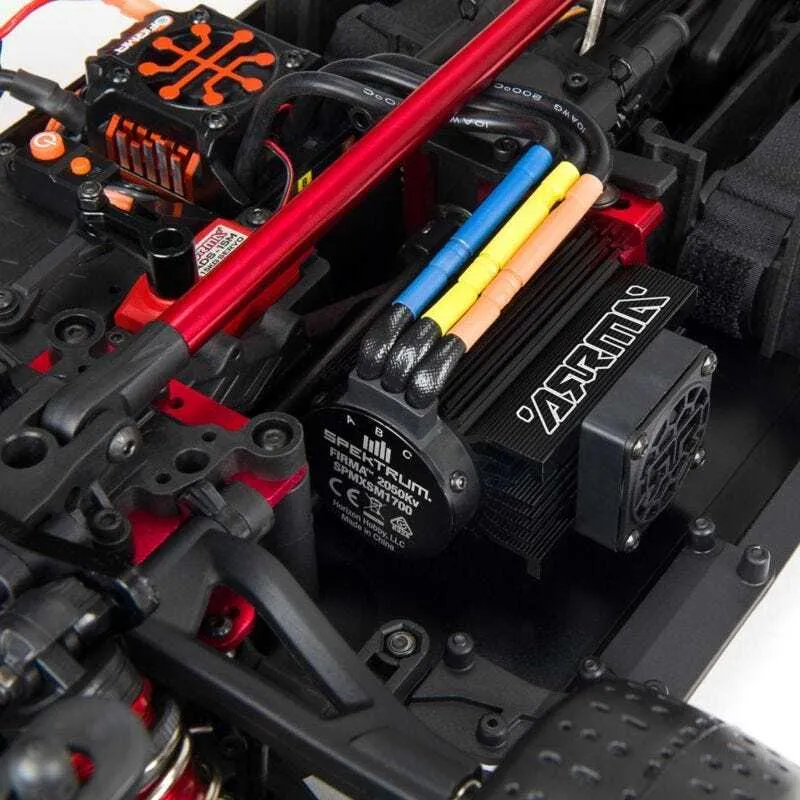

• Spektrum® Firma 4074 2050Kv Brushless Motor with Safe-D pinion gears
• New electronics module
  • Improved range
• New handbrake feature
  • Mechanical rear brakes for stunts and drifting
  • Convenient DX3 transmitter handbrake switch

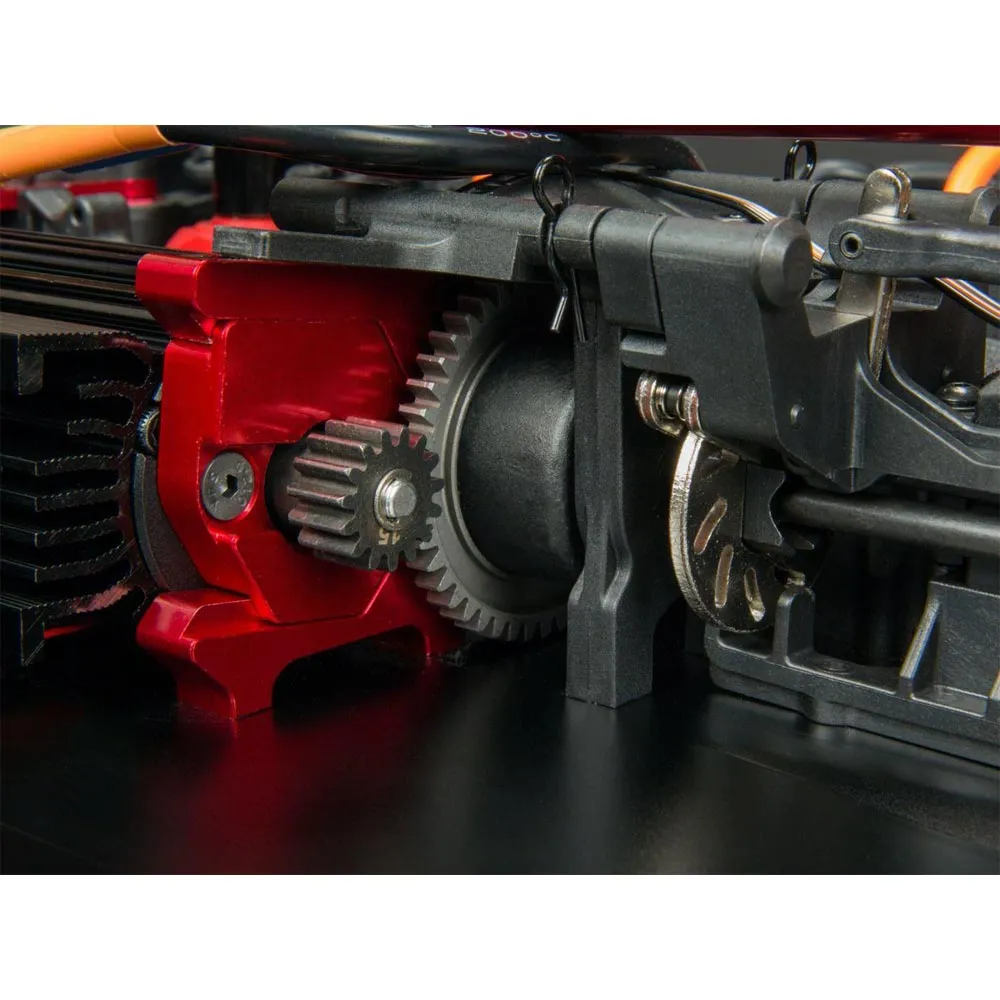

  • Chassis handbrake module with vented disc brake
• Fresh street body look with matte gloss effect designs
• Tunable wing for customizing the downforce

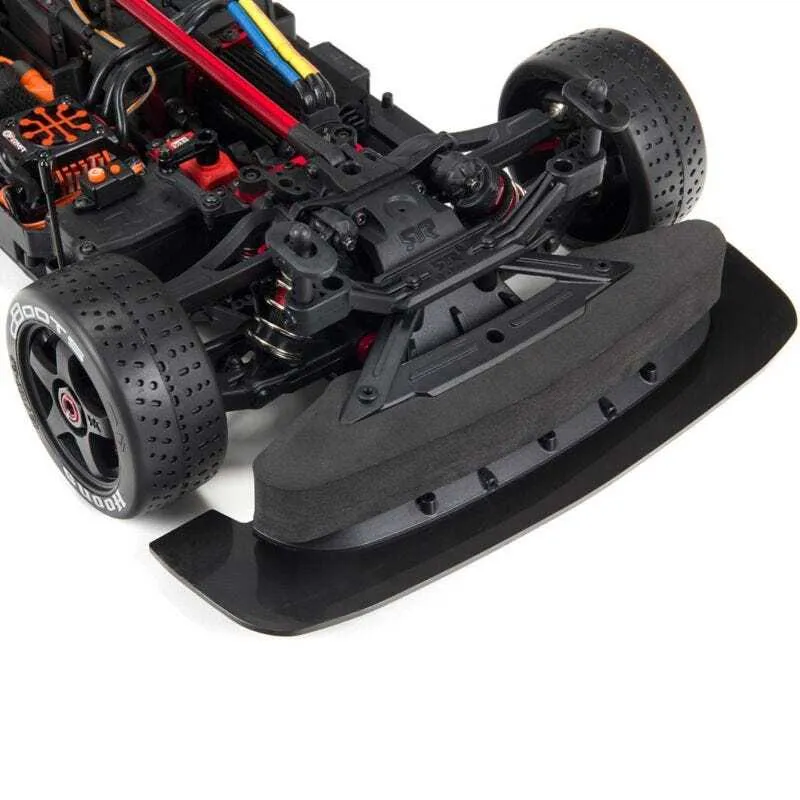

• Full-width front splitter balances downforce distribution
• Rear diffuser increases downforce and grip for cornering faster and with confidence
• Adjustable front and rear body mounts
• 3mm Plate, 6061-T6 anodized aluminium chassis
• Centre brace for maximum durability
• Heavy-duty drivetrain with durable steel driveshafts throughout
• High-speed centre driveshaft support
• Rubber-shielded bearings
• All-metal diff outdrives and gearbox internals
• Updated internal gears with new tooth profile for increased strength
• Lower internal gear ratio to reduce the centre line transmission RPM, reducing centre driveshaft resonance and increasing drivetrain durability
• Oil-filled, adjustable, anodized aluminium shocks
• Black-anodized aluminium front and rear shock towers
• Waterproof* receiver box
• Large battery trays
• 5-spoke wheels
• Durable wheel hubs

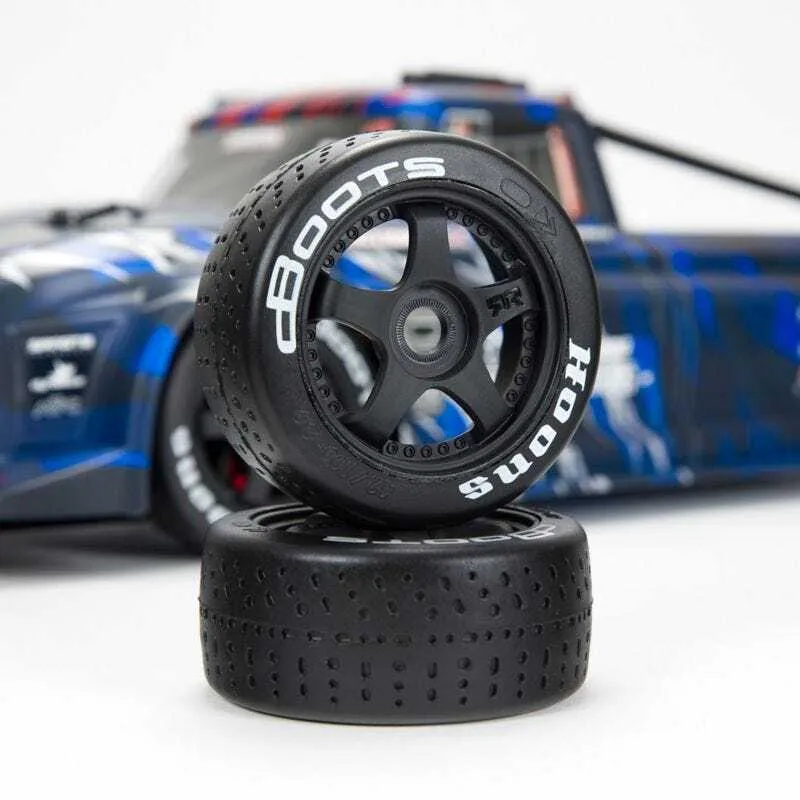

• dBoots® Hoons all-road tires
• 2-year limited warranty (see website for details)

The ready-to-runINFRACTION 6S BLX 4WD1/7 scale truck tops off a tough and powerful ARRMA® brushless platform with stunning style x ideal for intermediate-level drivers who are eager to experience street bashing at 80+ MPH speeds (achievable in optimum conditions using a 6S LiPo and the included speed pinion gear). Its Spektrum® DX3 radio and Smart brushless power system components provide real-time telemetry that also helps you reach and maintain maximum performance.

Another feature new to the INFRACTION 6S BLX 4WD is a handbrake. The chassis includes a module for a rear vented disc brake and a powerful Spektrum® SPMS650 brake servo. You control the handbrake from a convenient switch on theDX3 transmitterfor thrilling drifting, hooning and stunt action.

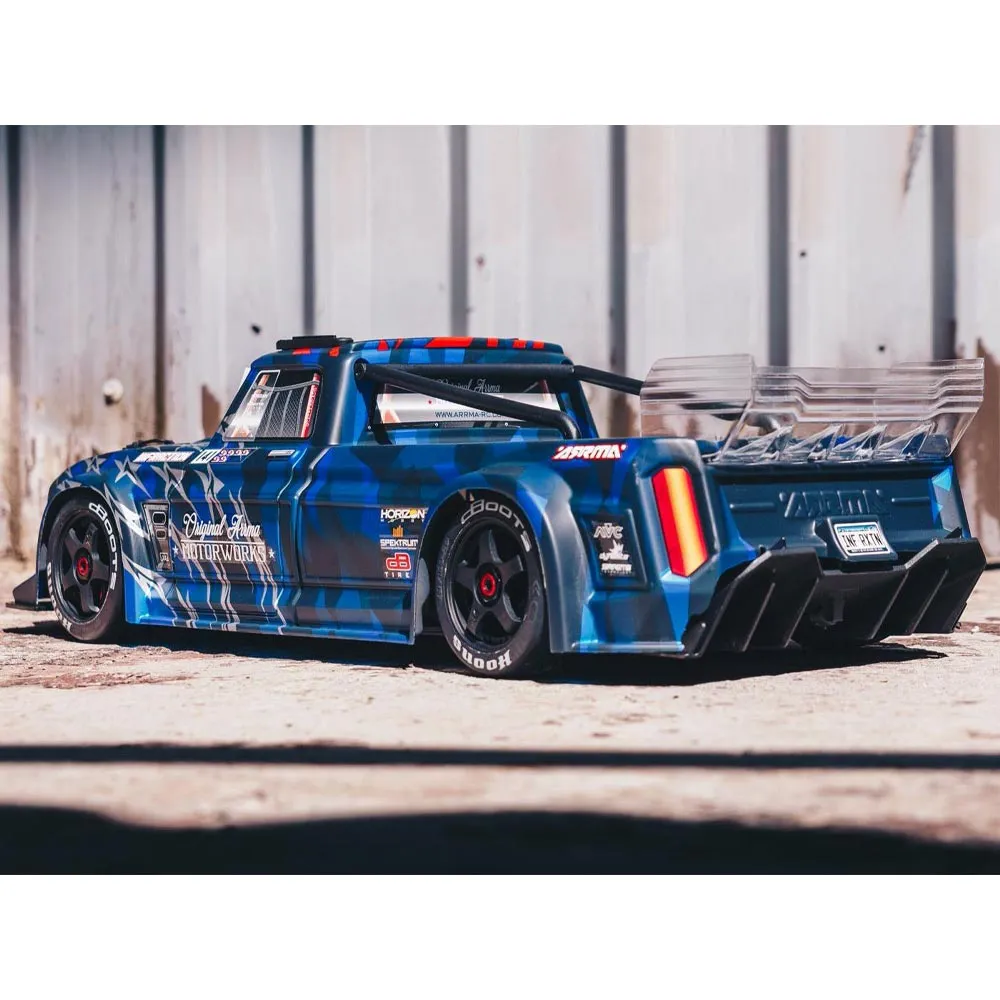

With its 4X4 traction, you can run theINFRACTION 6S BLX 4WD on all roads, in all conditions x over loose gravel, asphalt, smooth dirt, and short grass, in the sun, rain, and ice x while enjoying fresh RESTO MOD looks. The street body arrives factory-finished with new matte gloss effect designs. The included tunable wing lets you customize the downforce just the way you want it.

To further enhance the aerodynamics, the chassis includes a full-width front splitter that balances downforce distribution. A rear diffuser increases downforce and grip, enabling you to corner faster and with confidence. Mounted on realistic 5-spoke wheels, the four dBoots® Hoons all-road tires keep their grip on the surface to pour on speed or stop on a dime.

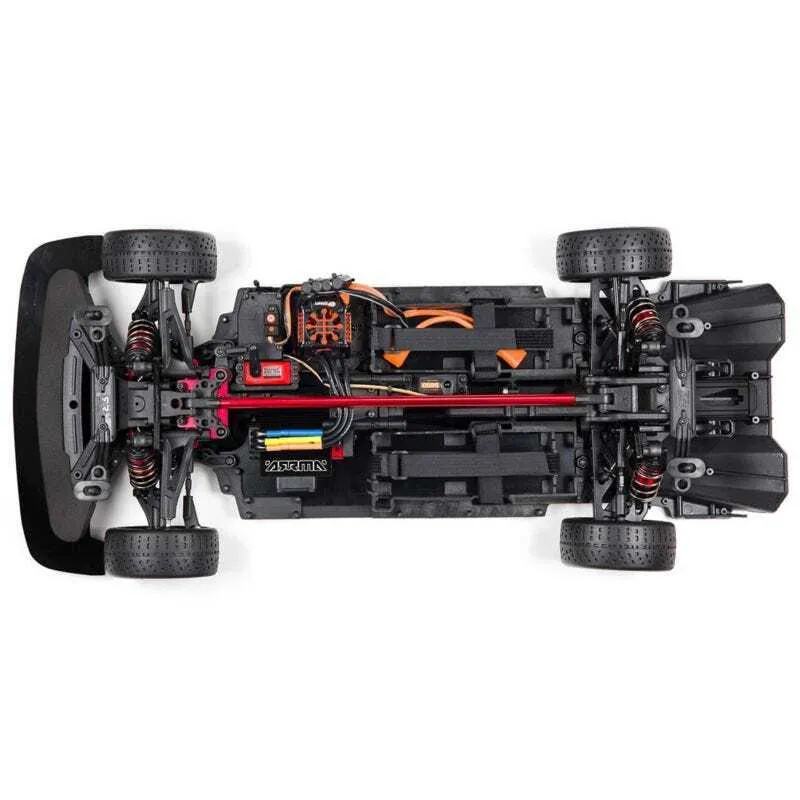

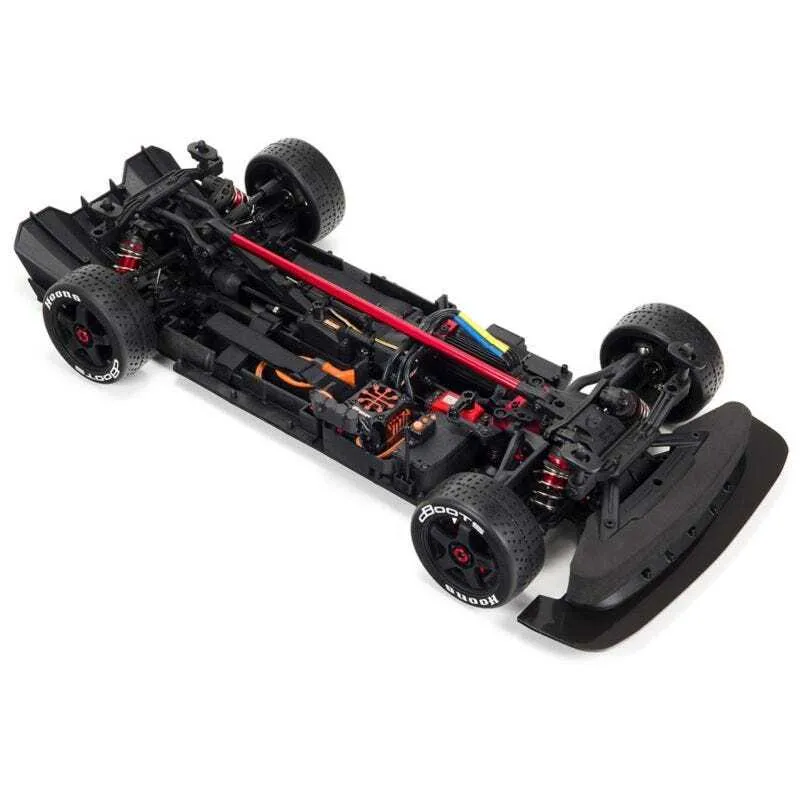

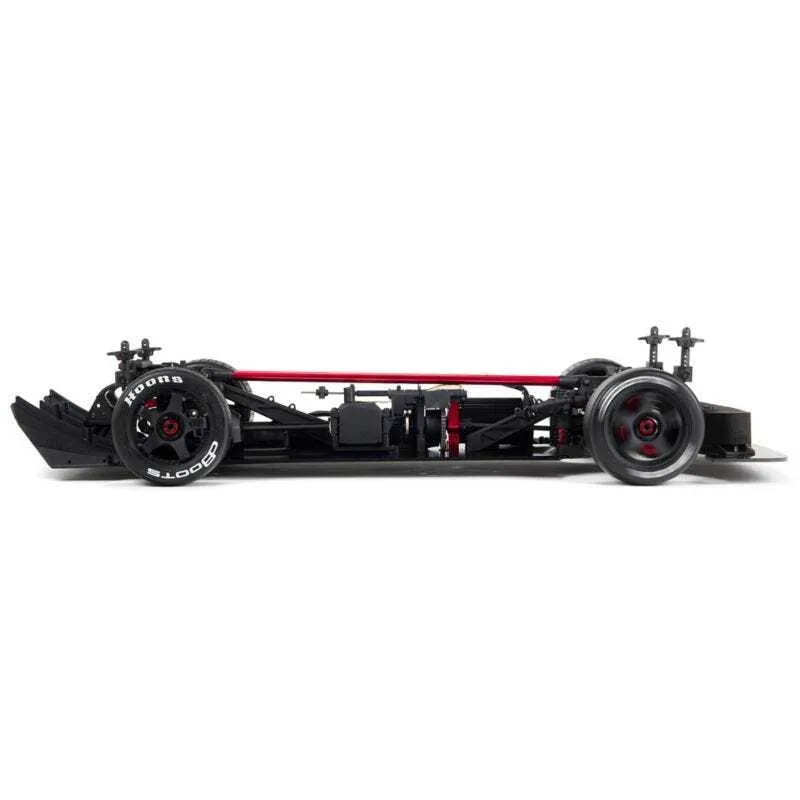

Underneath those streamlinedStreet Bashlooks is a chassis which proves to the world, once again, that ARRMA® builds the most durable bashers. The 6061-T6 anodized aluminium chassis houses a heavy-duty drivetrain with steel driveshafts, plus all-metal diff outdrives and gearbox internals. Updated internal gears feature a new tooth profile for increased strength. A lower internal gear ratio reduces the centreline transmission RPM, reducing the centre driveshaft resonance and increasing drivetrain durability. Chassis toughness is reinforced with a centre brace. Bearings are rubber-shielded, and the adjustable, oil-filled, anodized aluminium shocks are mounted on strong, black-anodized aluminium shock towers.

ARRMA® has equipped the ready-to-run INFRACTION 6S BLX 4WD with the 3-channel Spektrum® DX3 radio and an SR6110AT receiver featuring AVC® (Active Vehicle Control) technology for high-speed stability. A convenient voltage level indicator is built into the transmitter which lets you easily track on-board Smart battery power. ThisRC truck's brushless power system also features Spektrum® Firma Smart components, so it's easy to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM. Just download the Spektrum® Dashboard app for iOS or Android, available for free at the App Store or Google Play.

What's in the box?

• ARRMA® INFRACTION RETRO MOD STREET BASH 1/7 6S BLX 4WD RTR

• Spektrum® DX3 DSMR® Radio with SR6110AT Receiver

• Spektrum® Firma 150A Smart ESC

• Spektrum® Firma 4074 2050Kv Brushless Motor

• ARRMA® ADS-15M Waterproof Steering Servo

• Spektrum® SPMS650 Brake Servo

What you need

• (2) 2S or 3S LiPo batteries
• Compatible charger
• Safe LiPo charging bag
• (4) AA transmitter batteries

Specs

Completion Level

Ready-to-Run

Scale

1/7

Length

27.36 in (695mm)

Width

12.20 in (310mm)

Height

7.87 in (200mm)

Weight

11 lb (5kg)

Ground Clearance

0.59 in (15mm)

Wheelbase

15.98 in (406mm)

Front Track

12.13 in (308mm)

Rear Track

12.01 in (305mm)

Chassis

3mm Plate, 6061-T6 Aluminium

Suspension

Independent

Shock Type

3.03 in (77mm) FR, 3.43 in (87mm) RR. Aluminium

Drivetrain

4WD

Differential

Three oil-filled metal gear diffs

Wheel Type

5-Spoke, 17mm hex

Wheel Diameter

3.27 in Inner, 2.95 in Outer (83mm Inner, 75mm Outer)

Wheel Width

1.69 in (43mm)

Tyre Compound

White

Tyre Tread

Hoons

Tyre Diameter

3.94 in (100mm)

Motor Type

Non-sensored Brushless

Motor Size

4074

Pinion

15T

Spur Gear

46T

Gear Pitch

1.0MOD

Internal Gear Ratio

2.8:1

Final Drive Ratio

8.58:1

Speed Control Included

Yes

Radio

Spektrum® DX3 3-Channel

Servos Included

Yes

Brakes

Metal disc with metal pads

Body

INFRACTION, Screen printed, decaled and trimmed

Ball Bearings

Transmission

Experience Level

Intermediate

Recommended Environment

All-Road

Is Assembly Required

No

Approximate Assembly Time

Less than 1 hour
