Tamiya 1/10 Weider HSV-010 (TA05V.2) 58484

Drive the 2010 Super GT Champion Machine

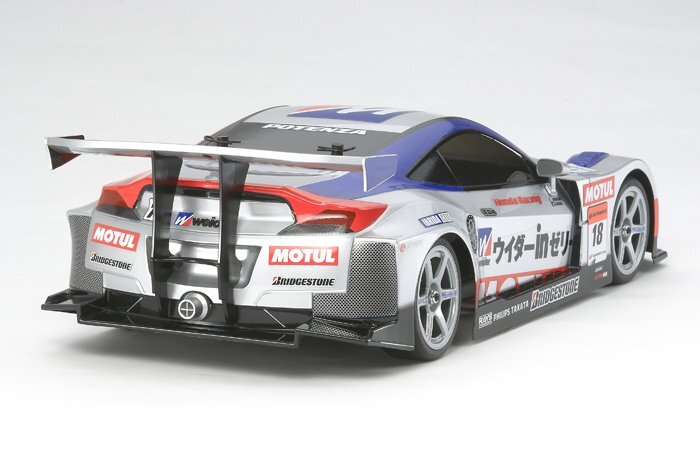

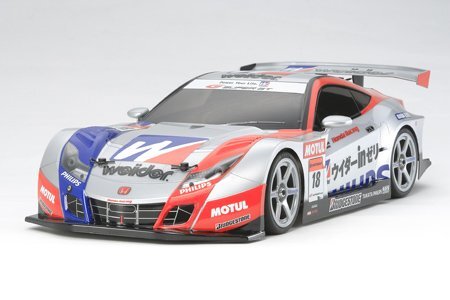

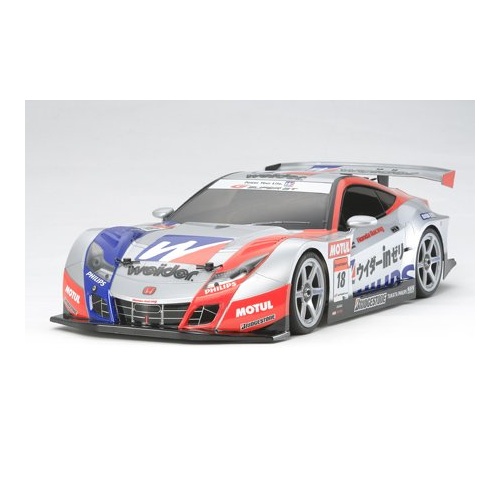

This is a 1/10 scale R/C assembly kit of Team Weider's Honda HSV-010, which was the 2010 Super GT500 class championship-winning car. The dynamic form of the race car has been accurately reproduced with its distinctive livery realistically depicted with included stickers. Separately-molded parts for the large rear wing and side mirrors add even greater realism.

The Evolved Race-Spec Chassis, TA05 ver.II
The chassis width has been reduced for greater roll movement range during cornering. Thanks to the one-piece aluminum motor mount with cantilever center shaft, the position of the battery pack has been shifted forward, resulting in optimum balance and enhanced handling. The drivetrain features front and rear 37T ball differentials and an 18T center pulley. The four wheel double wishbone suspension features an inboard front suspension layout with short reversible suspension arms and uprights which have 1050 ball bearings. In addition, the separate suspension mounts help to achieve easier maintenance and setting changes.

Maintenance is made easier thanks to the left and right separate suspension mounts (front and rear).

Newly designed one-piece aluminum motor mount with cantilever center shaft led to the narrower chassis design.

• Length: 441mm, Width: 191mm, Height: 116mm
• Wheelbase: 257mm, Tread (Front & Rear): 165mm, Tire Width/Diameter (Front & Rear): 24mm/64mm
• Type 540 Motor
• Horizontally-Placed Motor 2-Belt Driven 4WD
• Front & Rear Ball Differential Gears
• 3-Piece Steering Tie-Rod
• Front & Rear Double Wishbone Suspension
• CVA Shock Unit Super Mini
• Gear Ratio=7.19 :1
