Tamiya 1/10 4WD Buggy Super Hotshot 2012 RC Kit (NO ESC)

Description

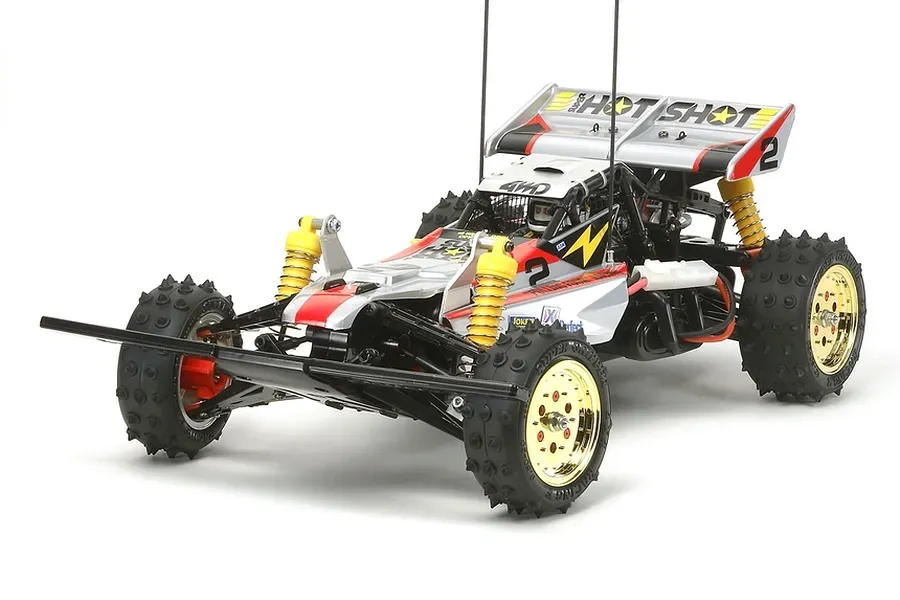

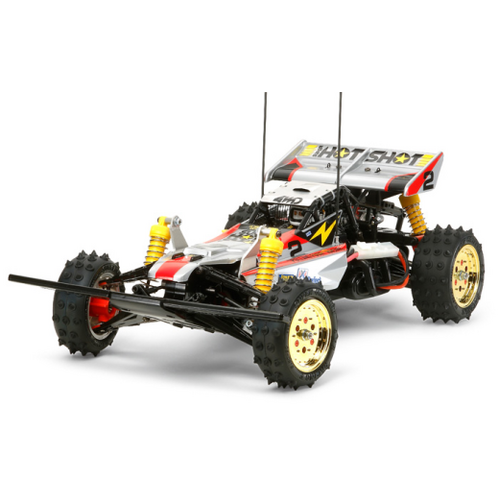

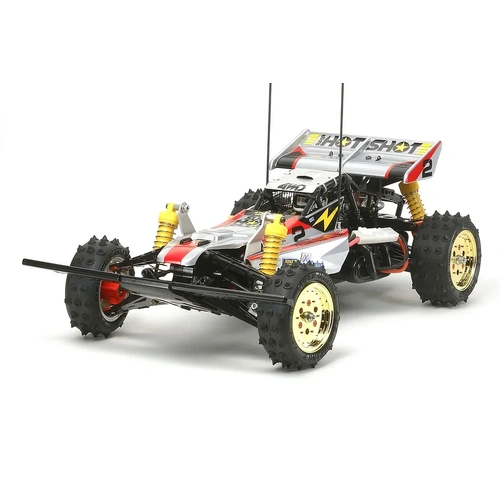

This is a re-issued R/C assembly kit of the Hot Shot. It originally debuted in 1985 as Tamiya's first 4WD off-road buggy. The buggy features a shaft drive 4WD system providing stable performance while running and cornering. Drive and propeller shafts feature dog bone type linkage, while front and rear differential gears provide smooth handling. Furthermore, the front and rear dampening is handled by a single mono-shock for both the front and rear suspension in addition to using sway bars to hold corning performance.

FEATURES:

Chassis: Monocoque ABS Resin
Drive: Four wheel shaft drive with dogbone type linkage
Motor: Type 540 with aluminum heat sink and connectors
Shocks: Front and rear mono type horizontally mounted
Gearboxes: Sealed
Differentials: Planetary gear
Transmission: Single-speed
Tires: Spike, Front 3 (77mm) diameter, 1.1" (28.5mm) wide
Rear 3" (77mm) diameter, 1.4" (37mm) wide
Wheels: Nylon resin, White in color
Front 1" (25.4mm) wide, 2" (51mm) diameter
Rear 1.3" (33mm) wide, 2" (51mm) diameter
Bumpers: Front plastic
Suspension: Four wheel double wishbone
Camber Tie Rods: Non-adjustable
Steering Tie Rods: Adjustable
Steering: Bell crank type with servo saver

INCLUDES:

Tamiya Hotshot buggy with two shocks, 540 motor, heat sink, body, tires, wheels, 13 and 15 tooth pinion gears, spur gear, instructions and decal sheet

REQUIREMENTS:

Radio: 2-Channel with 1 Servo for Steering
Radio Batteries: (8) AA size
ESC
Battery: 6-cell w/standard connector
Charger: AC/DC Timed or Peak for 6-cell battery
Paint: Polycarbonate safe spray or brush-on
Misc. Items: Building and track equipment

SPECIFICATIONS:

Length: 15.3" (390mm)
Width: 9.2" (235mm)
Height: 5.9" (150mm)
Weight: 2.8lbs (1270g) approximately
Gear Ratio: 10.43:1 with 13T pinion gear
8.704:1 with 15T pinion gear
Length: 8.7" (220mm)
Width: 3.7" (95mm) at rear wheels (widest point)
3.1" (80mm) at front wheels (thinnest point)
Height: 2.3" (59mm)
