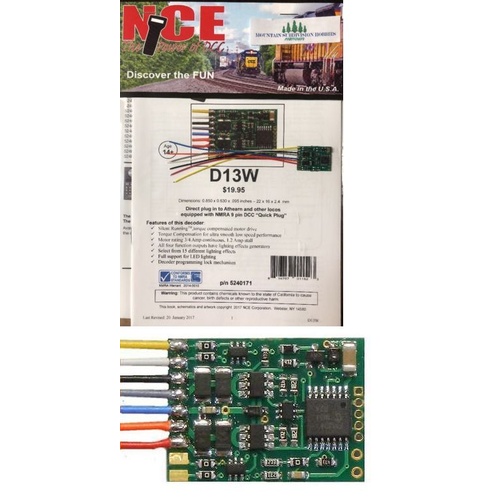

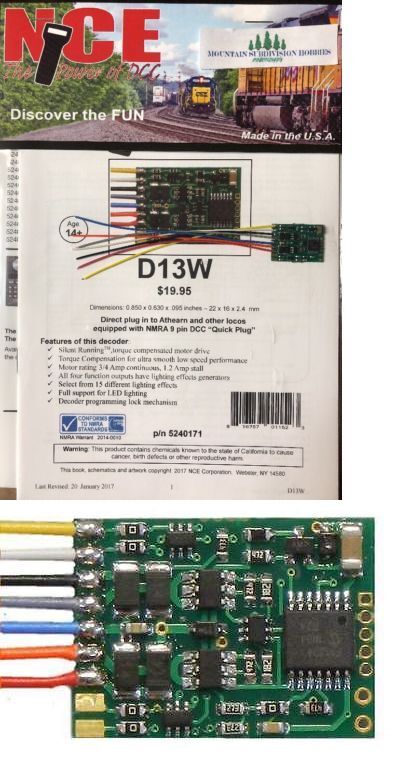

NCE D13W Four Function Decoder Pack of Four NCE-100
In StockThis item ships within 2 business days
NCE HO scale universal EPF (extended packet format) DCC decoder 4 functions and 15 different lighting effects. Instructions included (soldering required). This decoder is designed for HO scale locomotives not DCC Ready (not equipped with a DCC socket).
Silent Running... motor drive
Torque Compensation for ultra smooth low speed performance
Programmable Start, Mid and Maximum speed works for all speed modes
Motor rating 1.3 Amp continuous, 2.0 Amp peak (stall)
All 4 function outputs have lighting effects generators
Select from 15 different lighting effects (Mars, strobes, beacon, flicker, etc)
Function outputs can be mapped to different functions
2 or 4-digit addressing
Uploadable speed table interpolated to 128 speed steps
28 and 128 speed mode operation
Support for all forms of DCC programming
Decoder programming lock mechanism
Brake on DC feature assists automatic train control
Dimensions: 34.0mm x 16.5mm x 2.7mm (1.35 x .63 x .11)
