Kyosho 32798 MINI-Z MR-03EVO Chassis Set (N-MM2/4100KV)

Kyosho 32798 MINI-Z MR-03EVO Chassis Set (N-MM2/4100KV)

$289.00

Description

Equipped with the new standard lower speed range motor, EVO chassis set is the perfect step up from the Readyset

First released in December 2018 the MR-03EVO series delivered amazingly fast processing speed and featured a separate receiver board that provided the flexibility of transmitter choice. Two years after its stunning debut, the MR-03 EVO lineup has been strengthened with a race-based chassis. Until now the speed range setting was KV5600 for wide chassis, but it has been reduced a level to KV4100. While retaining the full bearing specifications and Ball Diff Set II, align the base chassis with the new standard speed range and open a wider group of users. From the compatible receiver units : RA-40 (EX-6R / EX-II / EX-RR); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 provides the optimal step-up from the Readyset. Perhaps the MR-03EVO chassis set’s greatest advantage is that it can also be combined with a brushed motor (No.MZ9E, sold separately) to adapt to an even wider range of driving conditions.

  • First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.

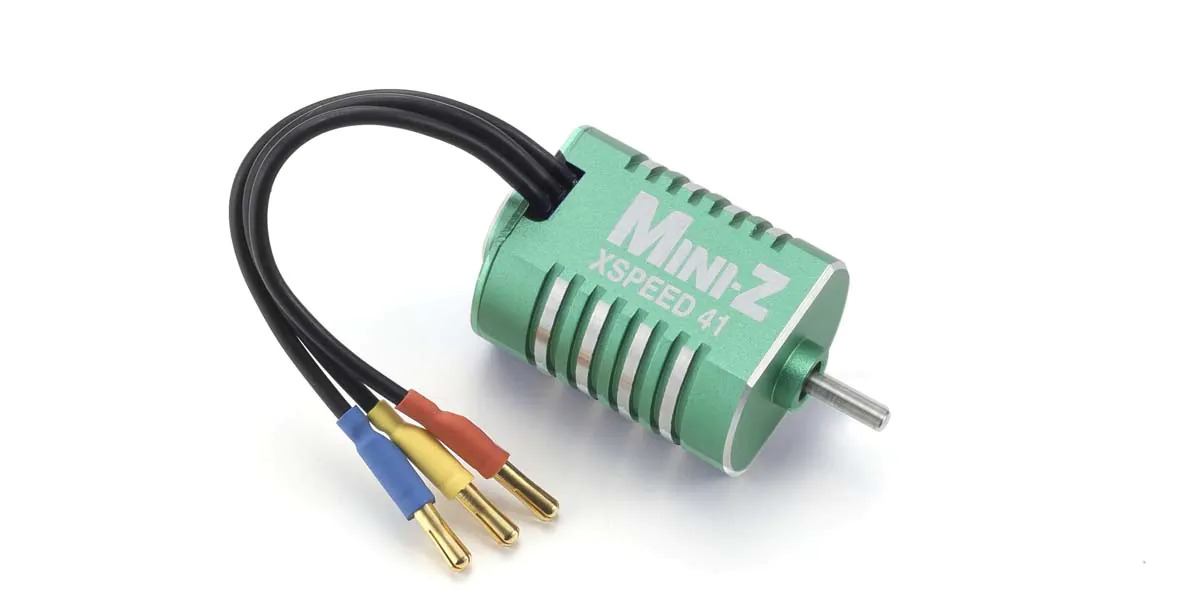

  • Includes new KYOSHO SPEED HOUSE XSPEED 41 brushless motor (4100KV).
  • I.C.S manager features detailed steering and throttle parameter adjustment, as well as switching between brushless and brushed modes.
  • Powered by independent CPUs for ESC and receiver, increased internal processing speed contributes to precision steering and throttle control.
  • Equipped with ball bearings and Ball Diff Set II.

Kit Contents

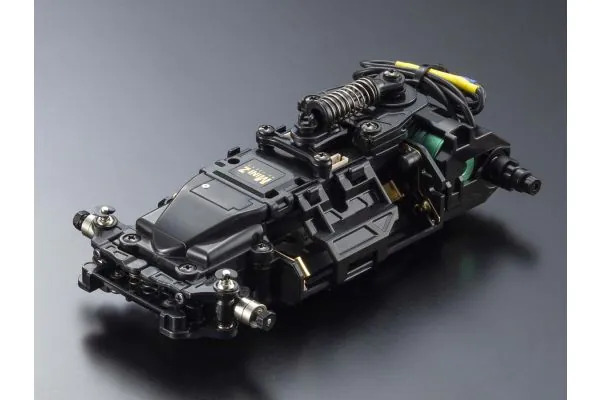

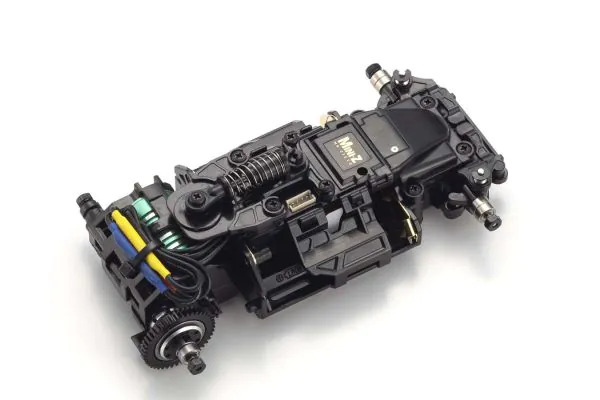

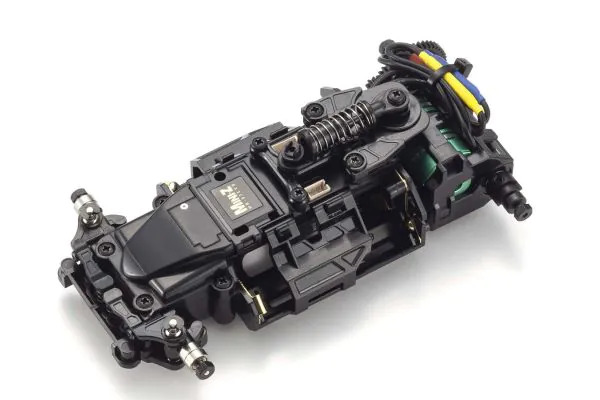

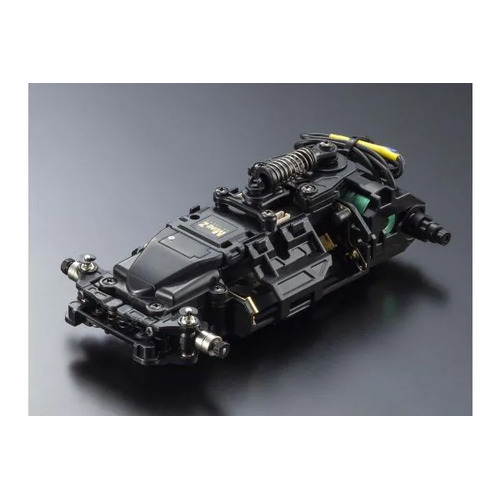

  • MR-03W-MM2 Factory assembled chassis with KYOSHO SPEED HOUSE KV4100 brushless motor
  • Parts set for changing front tread
  • 6T・7T・8T・9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts

What you Need

  • Receiver unit
  • Transmitter compatible with receiver unit
  • Auto Scale Collection (body set, wheels, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter

Specifications

  • Length  119.5mm
  • Width   70~76mm
  • Height  38mm
  • Motor Mount MM2
  • Wheelbase   94.0mm (L)
  • Tread F:61.5~65.0mm/R:61.5~65.0mm
  • Tires (F/R) φ25×8.5mm (sold separately)/φ25×8.5〜11mm (sold separately)
  • Gear Ratio  7.3、6.3、5.5、4.9:1
  • Weight 135g (Body / tires / wheels not included, battery included.)
  • Motor  KYOSHO SPEED HOUSE 4100KV

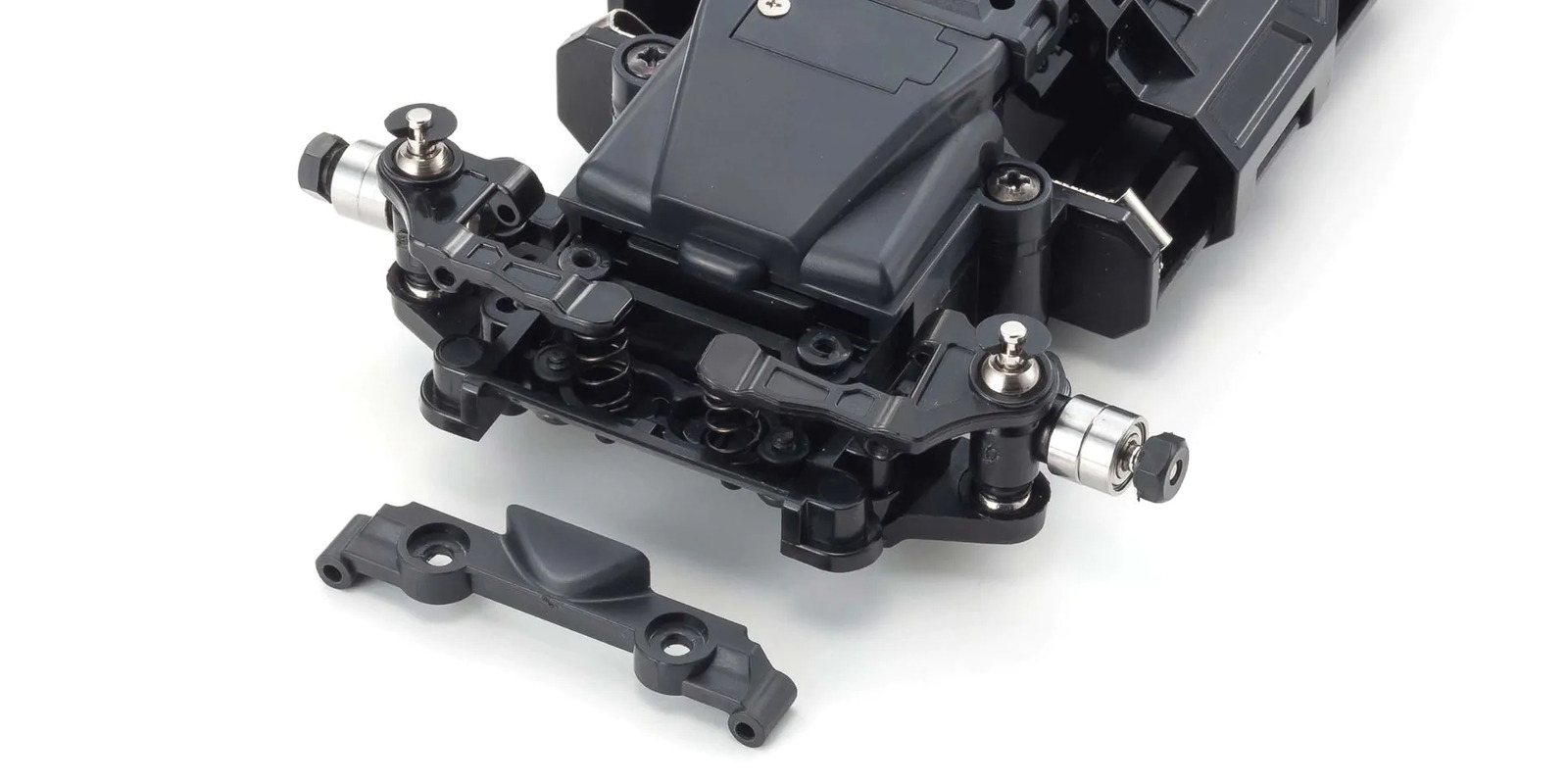

*Newly designed separate receiver cover and front upper arm mount make tread adjustment easier.

*Compatible with optional parts for the MR-03 chassis.

Brand Kyosho
