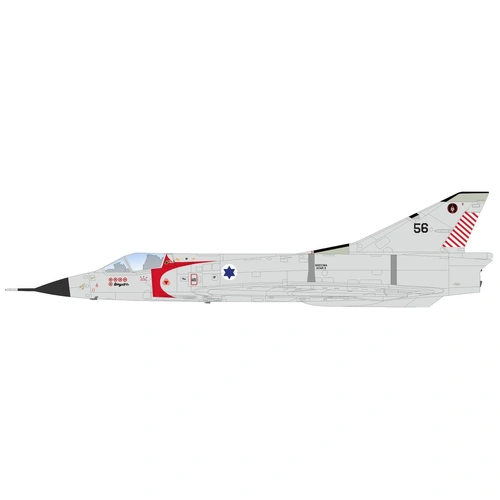

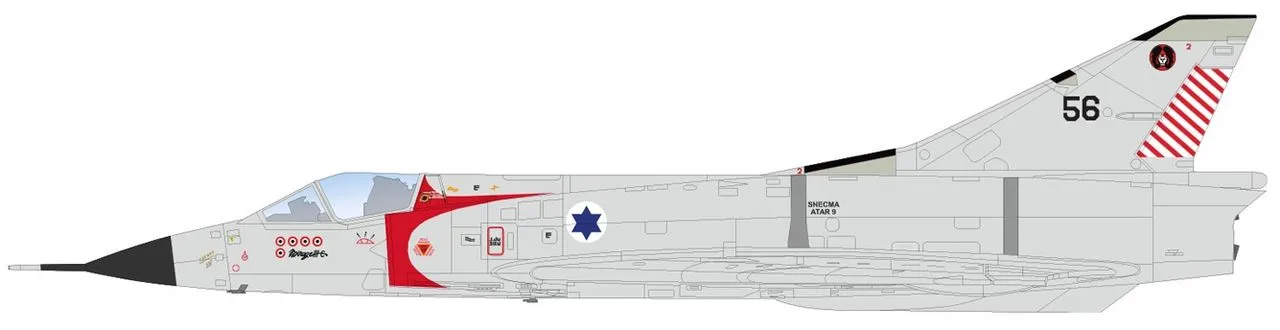

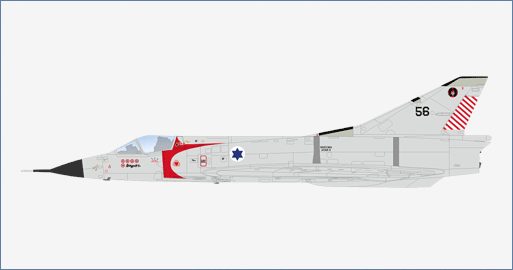

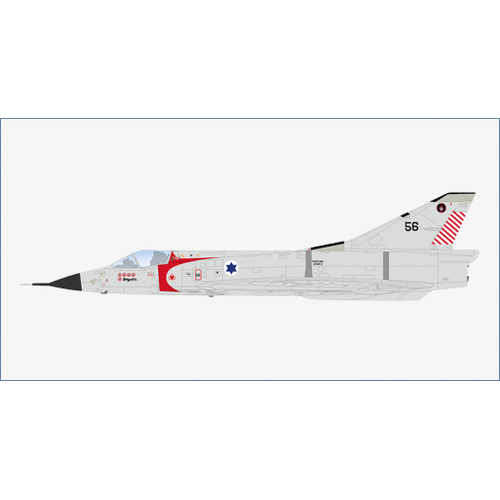

Hobby Master 1/72 Mirage IIICJ "Giora Epstein" No.56,101 San..lAF, Hatzor Air Base, 1967 Diecast Model Aircraft

Dimensions

Length:

49ft

Wing surface:

377 sq ft

Span:

26.97 ft

Height:

14.76 ft

Weight:

Empty:

15542 lbs

Internal fuel :

3 300 L

External fuel :

4 700 L

Maximum Take off:

21164 lb

Performance

Maximum Speed: Mach 2.2

Range:

3937.2 ft

Service Ceiling:

55776 ft

Rate of Climb:

50,000 ft/min (254 m/s)

Armament:

1 x 20 mm M61 Vulcan cannon mounted in nose with 578 rounds

9 x Hardpoints - a capacity of 13,700 lb (6,215 kg) with external fuel tanks and ordnance

2 x wingtip missile launch rails

4 x under-wing

3 x under-fuselage

Rockets:

2.75 inch (70 mm) Hydra 70 rockets

5 inch (127 mm) Zuni rockets

Missiles: Air-To-Air

4 x AIM-9 Sidewinders or

4 x AIM-132 ASRAAM or

4 x IRIS-T or 4 x AIM-120 AMRAAM and 2 x AIM-7 Sparrow or

Additional - 2 x AIM-120 AMRAAM

Air-To-Surface:

AGM-65 Maverick

Standoff Land Attack Missiles (SLAM-ER)

AGM-88 HARM Anti-radiation Missile (ARM)

AGM-154 Joint Standoff Weapon (JSOW)

Taurus Missile (Cruise Missile)

Anti-ship:

AGM-84 Harpoon

Bombs:

JDAM Precision-Guided Munition (PGM)

Paveway series of Laser-guided bombs

Mk. 80 series of unguided iron bombs

CBU-87 cluster bombs

CBU-89 gator mine

CBU-97

Mk. 20 Rockeye II

B61/Mk. 57 nuclear bombs

Others:

SUU-42A Flares/Infrared decoys dispenser pod and chaff pod Or

Electronic countermeasures (ECM) pod Or

AN/AAS-38 Nite Hawk targeting pod (USN only) to be replaced by AN/ASQ-228 ATFLIR Or

LITENING targeting pod (only used by USMC, Royal Australian Air Force, Spanish Air Force and Finnish Air Force) Or

Up to 3 x 330 US gallons (270 imp gallons / 1,200 liters) Sargent Fletcher drop tanks for ferry flight Or Extended range/loitering time

Avionics:

Hughes APG-73 radar

ROVER (Remotely Operated Video Enhanced Receiver) antenna for use by USN F/A-18C strike fighter squadrons

Inertial Navigation System (INS)

GPS

2 x mission computers

HUD (Head Up Display) cockpit display

Very High Frequency (VHF) omni-directional landing system

Multiple-functioning Cathode Ray Tube (CRT) display
